Water Pump Removal
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

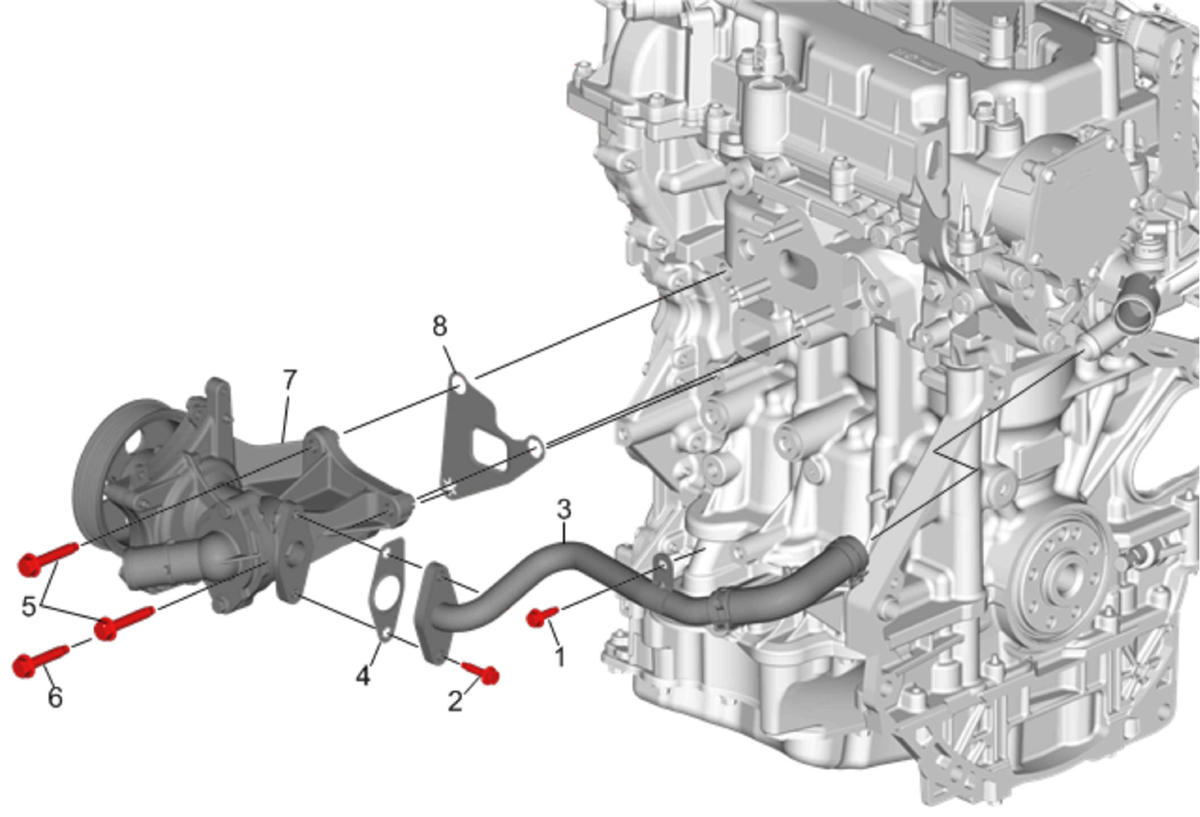

| Callout |
Component Name |
| 1 |
Thermostat Bypass Pipe Bolt |
| 2 |
Thermostat Bypass Pipe Bolt (Qty: 2) |
| 3 |
Thermostat Bypass Pipe |
| 4 |
Thermostat Bypass Pipe Gasket |
| 5 |
Water Pump Housing Bolt (Qty: 2) |
| 6 |
Water Pump Housing Bolt |
| 7 |
Water Pump |
| 8 |
Water Pump Gasket |
