Throttle Body Assembly Removal (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

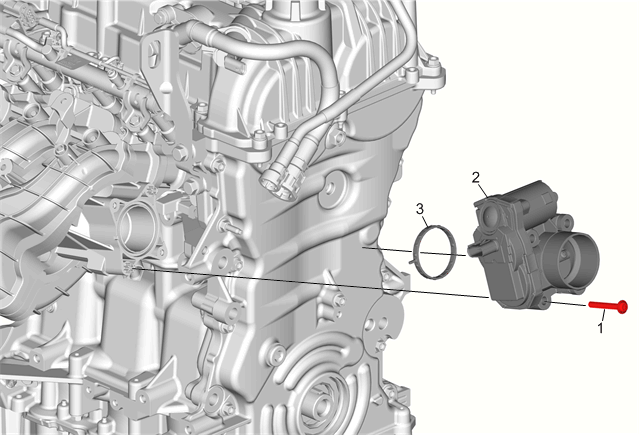

Fig 1: Throttle Body Assembly (L5Q)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Throttle Body Assembly Bolt (Qty: 4)
2	Throttle Body
3	Throttle Body Seal
