Throttle Body Assembly Installation (LV7)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

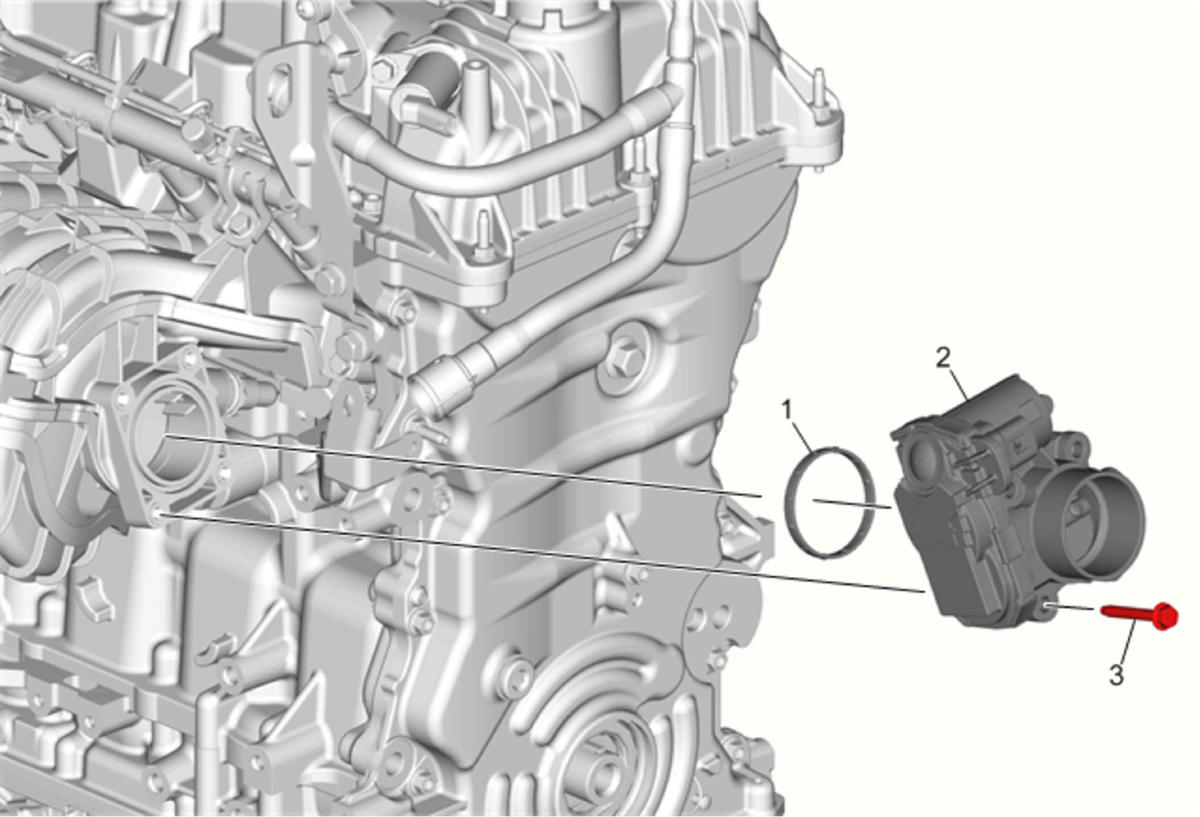

| Callout | Component Name |
|---|---|
| 1 | Throttle Body Seal
NOTE:
Use a NEW seal. Ensure the mating surfaces are clean and free of debris. |
| 2 | Throttle Body |
| 3 | Throttle Body Assembly Bolt (Qty: 4)
NOTE:
Tighten the 4 bolts in a criss-cross pattern.
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
