Oil Pump Drive Chain and Sprocket Removal
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

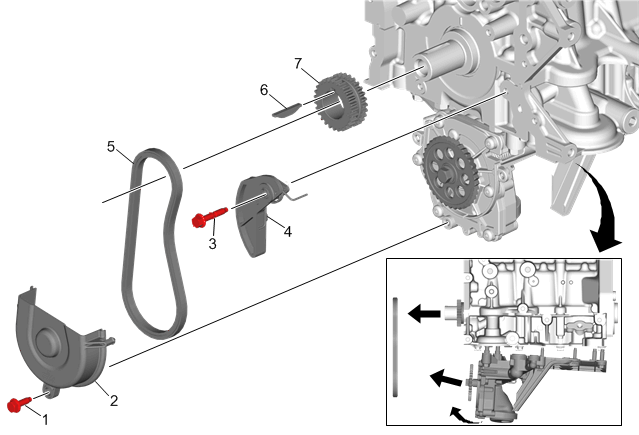

Oil Pump Drive Chain and Sprocket Removal
| Callout | Component Name |
|---|---|
| 1 | Oil Pump Drive Chain Cover Bolt |
| 2 | Oil Pump Drive Chain Cover |
| 3 | Oil Pump Drive Chain Tensioner Bolt |
| 4 | Oil Pump Drive Chain Tensioner |
| 5 | Oil Pump Drive Chain Procedure Loosen the oil pump assembly bolts and tilt the oil pump assembly in order to remove the drive chain. |
| 6 | Crankshaft Balancer Key |
| 7 | Crankshaft Sprocket |
