Crankshaft Oil Deflector and Oil Pump Removal
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Crankshaft Oil Deflector and Oil Pump Removal

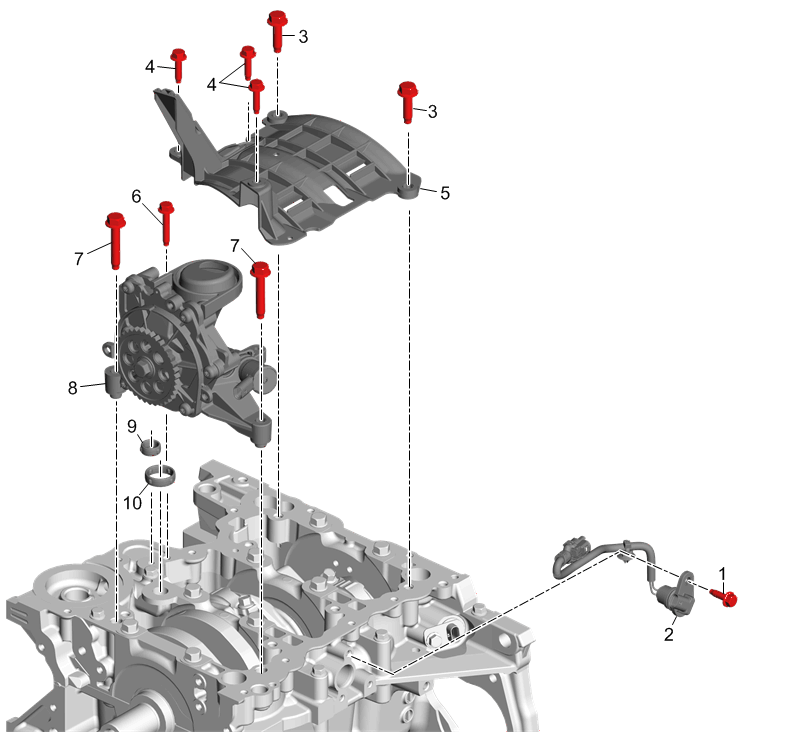

| Callout | Component Name |
|---|---|
| 1 | Wiring Harness Connector Bolt |
| 2 | Engine Oil Level Indicator Control Module Wiring Harness Procedure Disconnect the oil pump control valve connector, then remove through the lower crankcase. |
| 3 | Crankshaft Oil Deflector Bolt (Qty: 2) |
| 4 | Crankshaft Oil Deflector Bolt (Qty: 3) |
| 5 | Crankshaft Oil Deflector
NOTE:
Remove and discard the crankcase vent passage seal. |
| 6 | Oil Pump Bolt |
| 7 | Oil Pump Assembly Bolt (Qty: 2) |
| 8 | Oil Pump |
| 9 | Oil Pump Gasket |
| 10 | Oil Pump Gasket |
