Oil Pump Installation
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

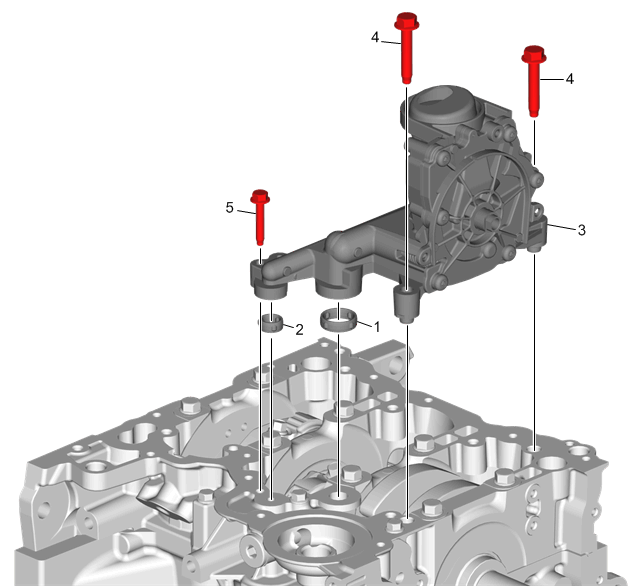

Oil Pump Installation
| Callout | Component Name |
|---|---|
| 1 | Oil Pump Gasket |
| 2 | Oil Pump Gasket |
| 3 | Oil Pump |
| 4 | Oil Pump Bolt (Qty: 2)
NOTE:
Hand tighten the bolts for the oil pump. Do NOT tighten to specification until the drive chain has been installed. |
| 5 | Oil Pump Bolt
NOTE:
Hand tighten the bolts for the oil pump. Do NOT tighten to specification until the drive chain has been installed. |
