Oil Pump Cleaning and Inspection (L5Q)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

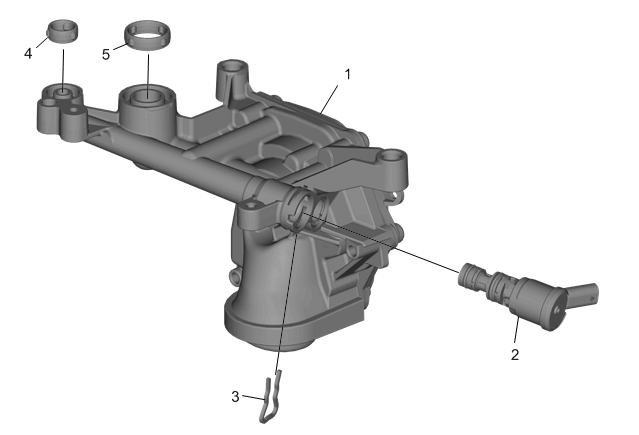

| Callout |
Component Name |
|
Preliminary Procedure
- Clean all the components.
- Inspect each component.
|
| 1 |
Oil Pump |
| 2 |
Oil Pump Flow Control Solenoid Valve |
| 3 |
Oil Pump Flow Control Solenoid Valve Retainer |
| 4 |
Oil Pump Gasket |
| 5 |
Oil Pump Gasket |
