Oil Pan Cleaning and Inspection (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

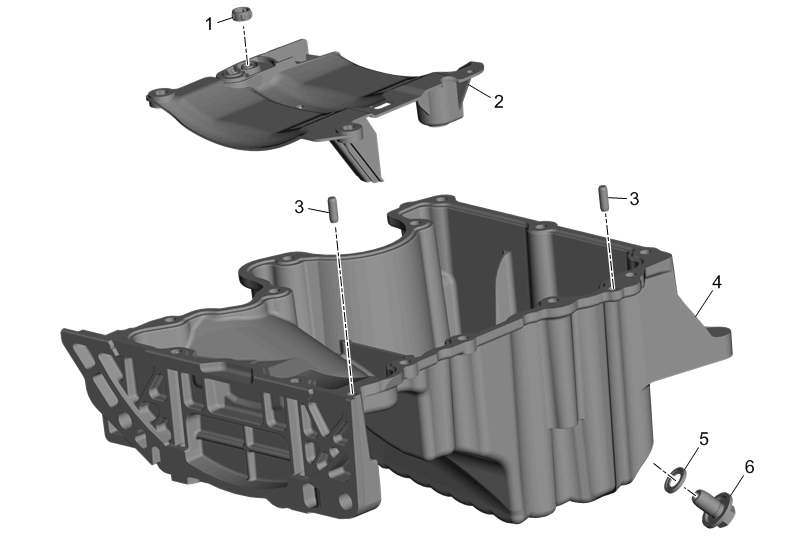

Fig 1: Oil Pan

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove all components prior to cleaning. Ensure proper use of room temperature vulcanizing (RTV) sealant. Refer to Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant Clean all the components. Inspect each component.
1	Crankcase Vent Passage Seal
2	Crankshaft Oil Deflector
3	Oil Pan Locating Pin (Qty: 2)
4	Oil Pan
5	Oil Pan Drain Plug Seal
6	Oil Pan Drain Plug
