Lower Crankcase Removal (L5Q)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

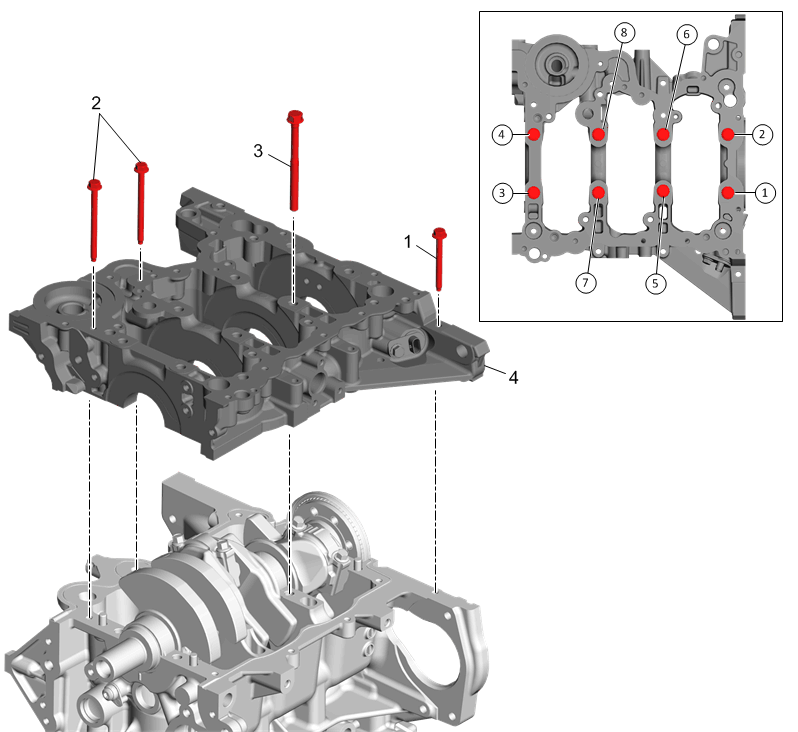

| Callout |
Component Name |
| 1 |
Lower Crankcase Bolt - Perimeter (Qty: 7) |
| 2 |
Lower Crankcase Bolt - Perimeter (Qty: 2) |
| 3 |
Lower Crankcase Bolt (Qty: 8)
Procedure
Remove bolts in sequence. Discard the bolts. |
| 4 |
Lower Crankcase |
