Lash Adjuster Arm and Lash Adjuster Installation

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

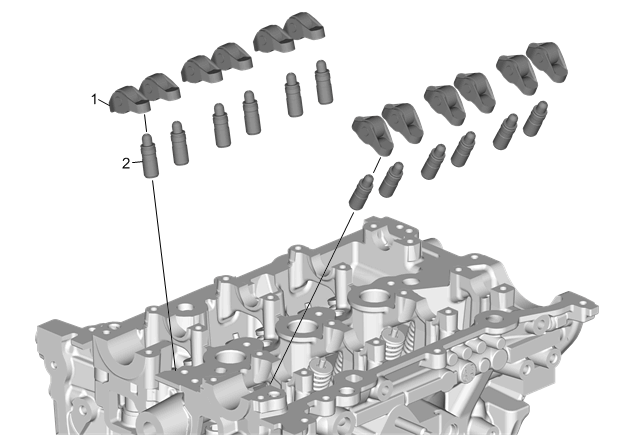

Fig 1: Lash Adjuster Arm And Lash Adjuster

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure NOTE: Many internal engine components will develop specific wear patterns on their friction surfaces. Components MUST be separated, marked, or organized in a way to ensure installation to their original location and position. Take precautions in order to prevent interchanging of parts. Tag or mark each part immediately when removed. Indicate location, direction, or orientation when necessary.
1	Hydraulic Valve Lash Adjuster Arm (Qty: 12)
2	Hydraulic Valve Lash Adjuster (Qty: 12)

Callout

Component Name

Preliminary Procedure

NOTE:

Many internal engine components will develop specific wear patterns on their friction surfaces.

Components MUST be separated, marked, or organized in a way to ensure installation to their original location and position. Take precautions in order to prevent interchanging of parts.
Tag or mark each part immediately when removed. Indicate location, direction, or orientation when necessary.

Hydraulic Valve Lash Adjuster Arm (Qty: 12)

Hydraulic Valve Lash Adjuster (Qty: 12)
