Camshaft Actuator Removal
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Camshaft Actuator Removal

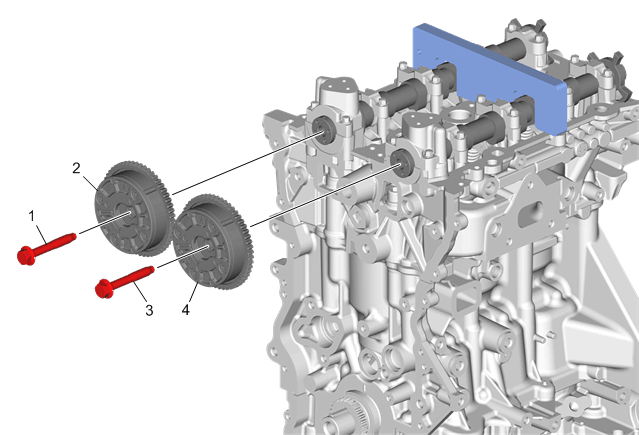

| Callout | Component Name |
|---|---|
| Preliminary Procedure Install the EN-51632 camshaft locking tool. Special Tools EN-51632 Camshaft Locking Tool Equivalent regional tools: Special Tools . |
|
| 1 | Camshaft Position Actuator Bolt
NOTE:
DISCARD the bolt. |
| 2 | Camshaft Position Actuator |
| 3 | Camshaft Position Actuator Bolt
NOTE:
DISCARD the bolt. |
| 4 | Camshaft Position Actuator |
