Intake Manifold Removal (L5Q)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

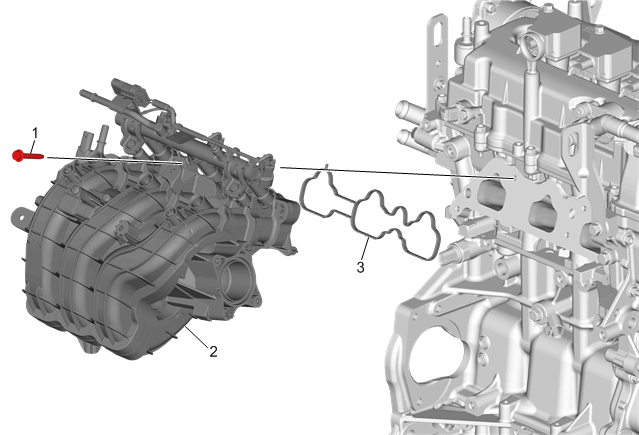

| Callout |
Component Name |
| 1 |
Intake Manifold Bolt (Qty: 5)
NOTE:
Bolt retainers may keep the bolts in position on the assembly.
|
| 2 |
Intake Manifold |
| 3 |
Intake Manifold Gasket |
