Intake Manifold Installation (LV7)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

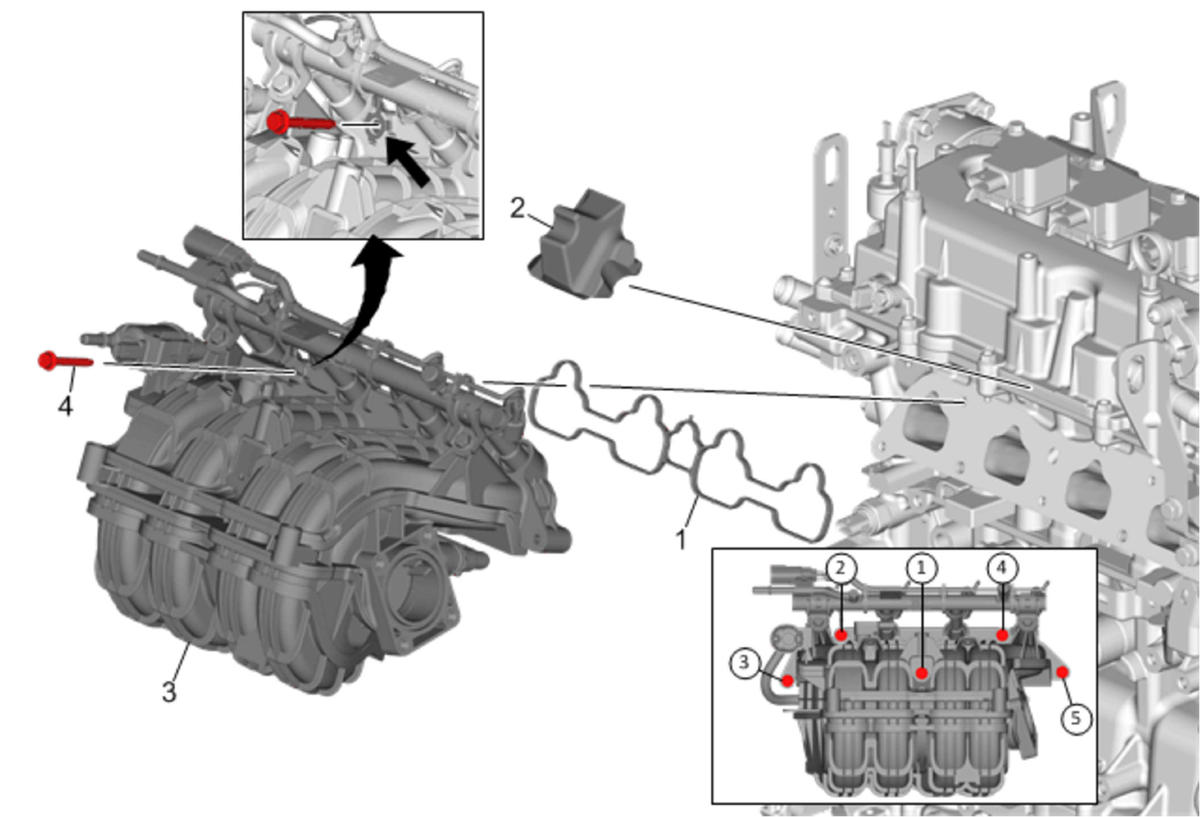

| Callout | Component Name |
|---|---|
| 1 | Intake Manifold Gasket
NOTE:
Use a NEW gasket. Ensure the mating surfaces are clean and free of debris. |
| 2 | Camshaft Housing Cover Insulator |
| 3 | Intake Manifold |
| 4 | Intake Manifold Bolt (Qty: 5)
CAUTION:
Refer to Fastener Caution .
NOTE:
The ground cable for the fuel rail is captured by one of the intake manifold bolts, as shown. Procedure Tighten the bolts in sequence in two steps final torque. Tighten 10 N.m (89 lb in) |
