Intake Manifold Cleaning and Inspection (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

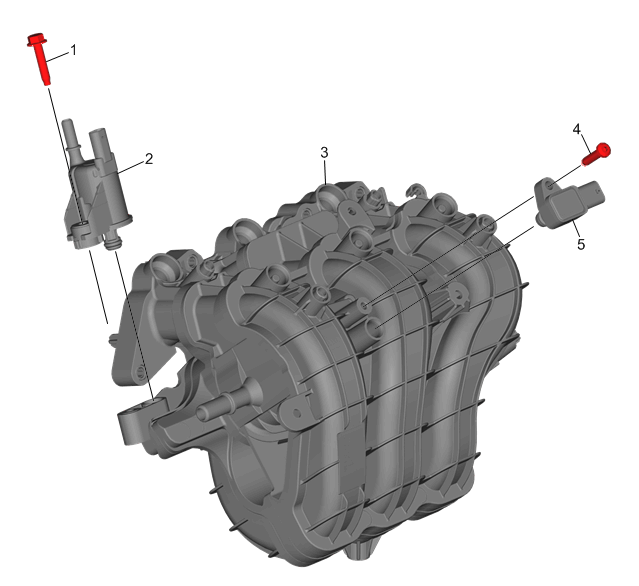

Fig 1: Intake Manifold

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove all components prior to cleaning and inspection. Inspect each component.
1	Evaporative Emission Canister Purge Solenoid Valve Bolt CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)
2	Evaporative Emission Canister Purge Solenoid Valve
3	Intake Manifold
4	Manifold Absolute Pressure Sensor Bolt Tighten 6 N.m (53 lb in)
5	Manifold Absolute Pressure Sensor
