Section 78 (Engine Mechanical - 1.4L (LV7) - Repair Instructions - Off Vehicle)
>>
Repair Instructions - Off Vehicle
>>
Ignition Coil Removal (L5Q)
Ignition Coil Removal (L5Q)
WARNING:
This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

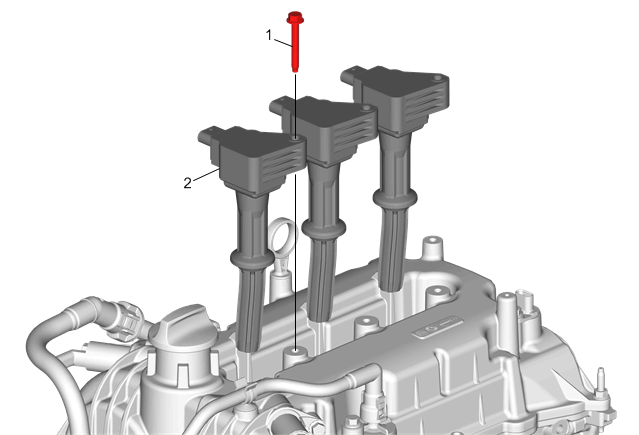

Fig 1: Ignition Coils (L5Q)
Courtesy of GENERAL MOTORS COMPANY
Callout
Component Name
1
Ignition Coil Bolt (Qty: 3)
2
Ignition Coil (Qty: 3)
