Ignition Coil Installation (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

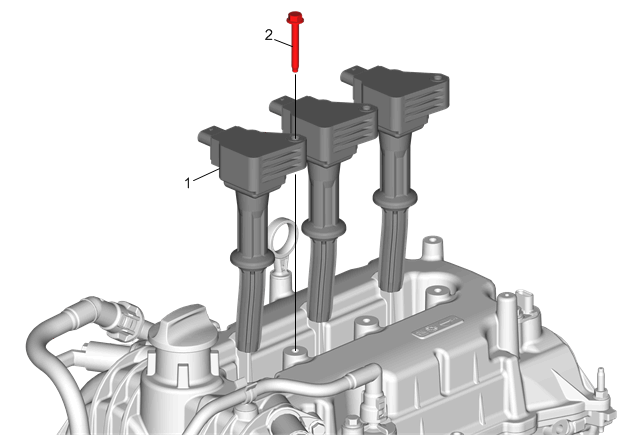

Fig 1: Ignition Coils (L5Q)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Inspect the inside of the ignition coil rubber boot for a thin, even coat of grease. If there is no grease present or additional grease is necessary, apply a thin coating of dielectric grease evenly to the inside of the ignition coil rubber boot, up to a depth of 15 mm from the end of the boot. Refer to Adhesives, Fluids, Lubricants, and Sealers (Europe L5Q)Adhesives, Fluids, Lubricants, and Sealers (North America L5Q) . Remove any excess grease from around the end of the boot, and ensure there is not an excessive amount within the boot.
1	Ignition Coil (Qty: 3)
2	Ignition Coil Bolt (Qty: 3) CAUTION: Refer to Fastener Caution . Tighten 10 N.m (89 lb in)

Callout

Component Name

Preliminary Procedure

Inspect the inside of the ignition coil rubber boot for a thin, even coat of grease.
If there is no grease present or additional grease is necessary, apply a thin coating of dielectric grease evenly to the inside of the ignition coil rubber boot, up to a depth of 15 mm from the end of the boot. Refer to Adhesives, Fluids, Lubricants, and Sealers (Europe L5Q)Adhesives, Fluids, Lubricants, and Sealers (North America L5Q) .
Remove any excess grease from around the end of the boot, and ensure there is not an excessive amount within the boot.

Ignition Coil (Qty: 3)

Ignition Coil Bolt (Qty: 3)

CAUTION:

Refer to Fastener Caution .

Tighten
10 N.m (89 lb in)
