Fuel Rail Installation (LV7)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

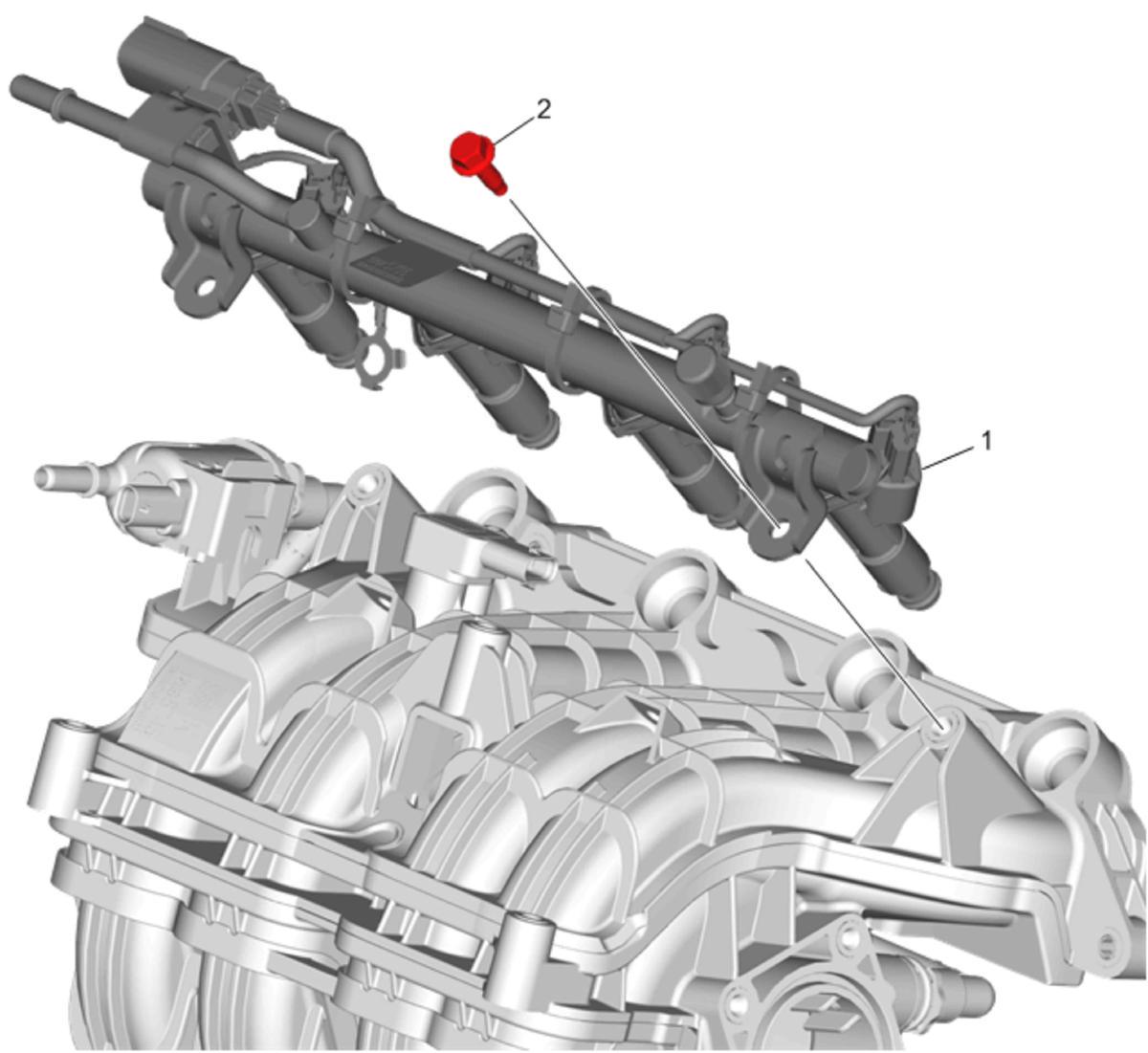

| Callout | Component Name |
|---|---|
| 1 | Multiport Fuel Injection Fuel Rail |
| 2 | Fuel Injection Fuel Rail Bolt (Qty: 2)
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
