Engine Lift and Sight Shield Bracket Removal (L5Q)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

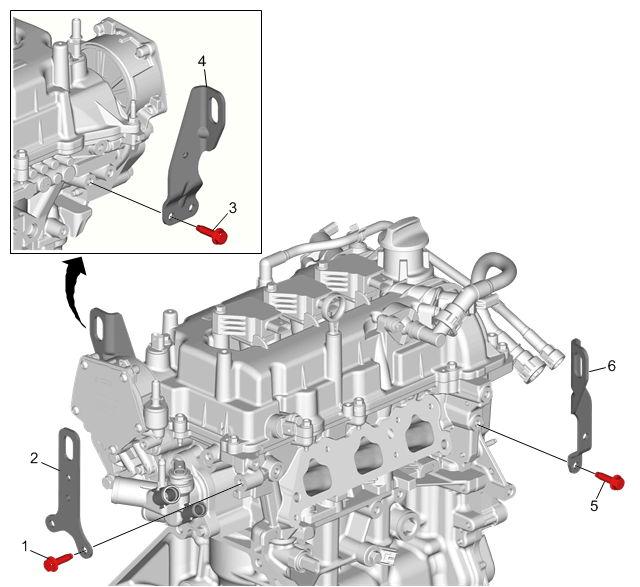

| Callout |
Component Name |
| 1 |
Engine Lift Bracket Bolt (Qty: 2) |
| 2 |
Engine Lift Rear Bracket |
| 3 |
Engine Lift Bracket Bolt (Qty: 2) |
| 4 |
Engine Lift Rear Bracket |
| 5 |
Engine Lift Bracket Bolt (Qty: 2) |
| 6 |
Engine Lift Front Bracket |
