Engine Front Cover Removal (LV7)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

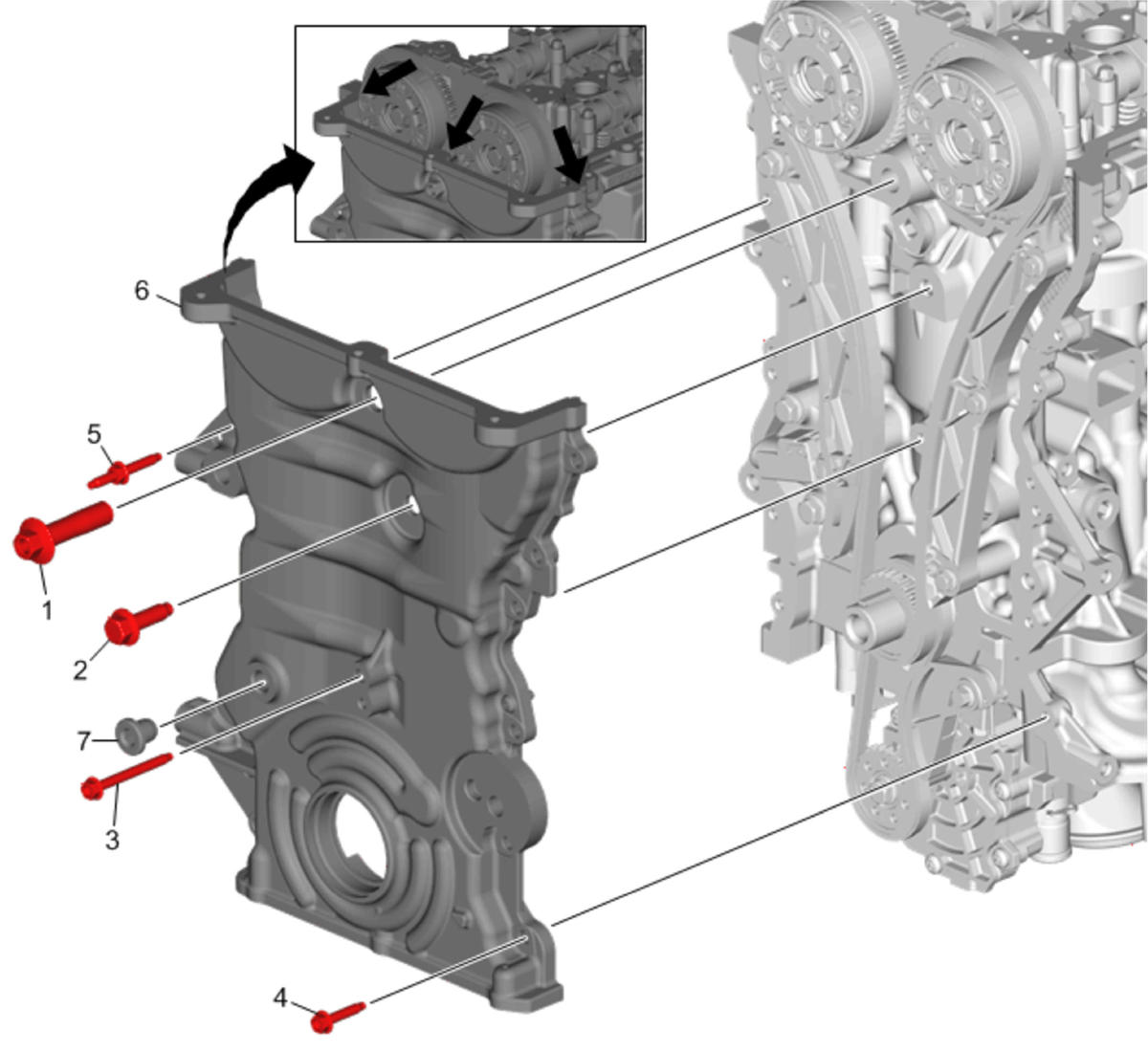

Fig 1: Engine Front Cover (LV7)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Engine Front Cover Bolt - M14
2	Engine Front Cover Bolt - M8
3	Engine Front Cover Bolt - M6
4	Engine Front Cover Bolt - M6 (Qty: 11)
5	Engine Front Cover Stud
6	Engine Front Cover Procedure Loosen the engine front cover carefully from the engine. Use a flat bladed plastic trim tool at the location as shown to pry. Ensure proper use of room temperature vulcanizing (RTV) sealant. Refer to Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant Clean and inspect the engine front cover mating surface.
7	Engine Front Cover Hole Plug
