Engine Flywheel Removal (Europe)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

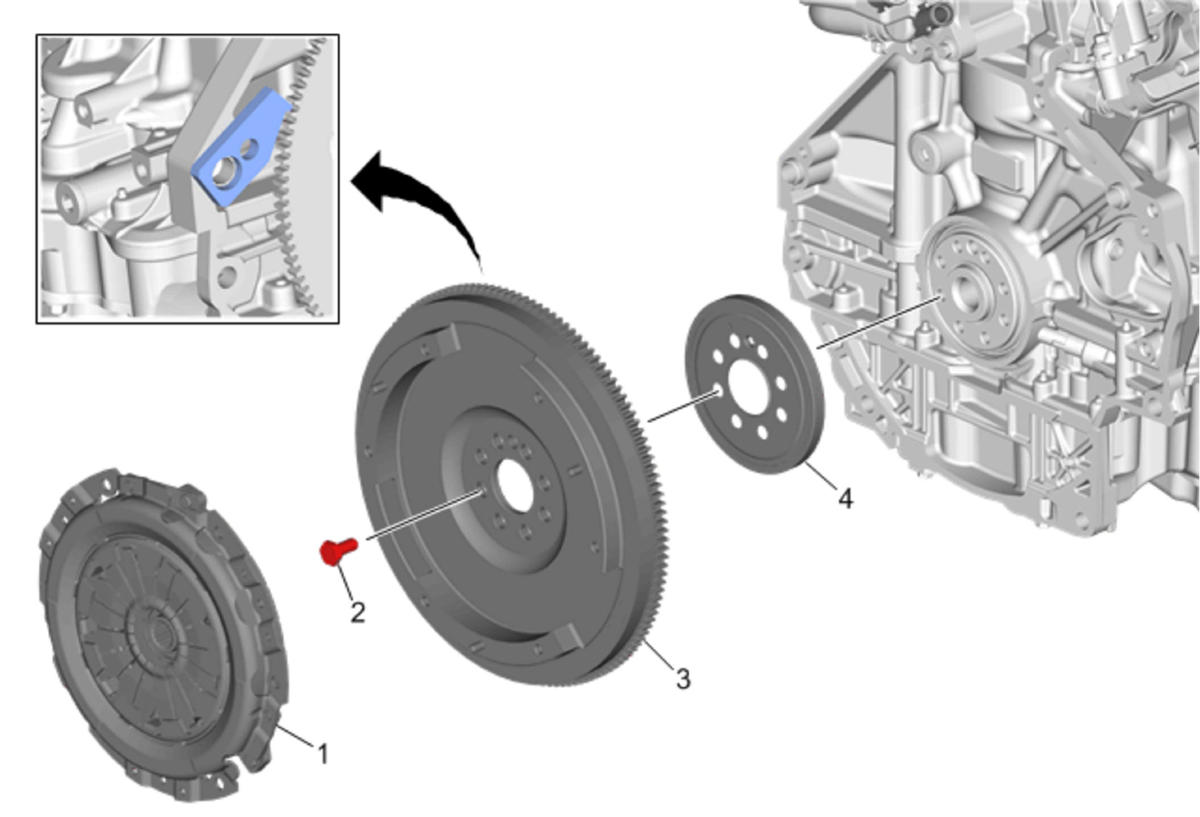

Fig 1: Engine Flywheel

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Install EN-652 holder, lock the flywheel via the starter ring gear. Special Tools EN-652 Flywheel HolderEquivalent regional tools: Special Tools .
1	Clutch Pressure and Driven Plate Assembly Procedure Remove the Clutch Pressure and Drive Plate Assembly. Refer to Clutch Pressure and Driven Plate Replacement .
2	Engine Flywheel Bolt (Qty: 8) NOTE: Discard the bolts.
3	Engine Flywheel
4	Crankshaft Position Sensor Reluctor Ring CAUTION: Refer to Crankshaft Position Sensor Reluctor Ring Caution .
