Engine Flywheel Installation (Europe)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

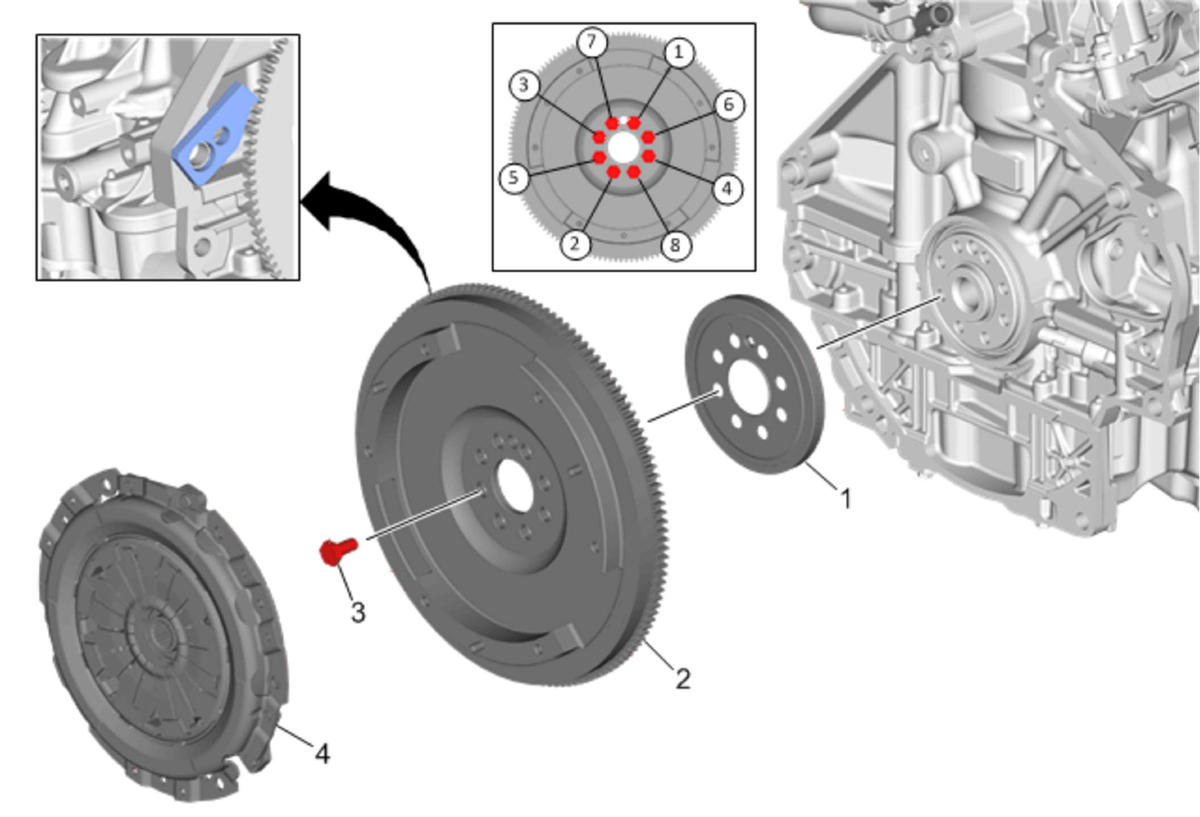

Fig 1: Engine Flywheel With Bolt Tightening Sequence (Europe)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Crankshaft Position Sensor Reluctor Ring CAUTION: Refer to Crankshaft Position Sensor Reluctor Ring Caution .
2	Engine Flywheel Procedure Install the flywheel, and install the flywheel bolts hand tight to hold in place. Install EN-652 holder to lock the flywheel via the starter ring gear. Special Tools EN-652 Flywheel Holder Equivalent regional tools: Special Tools .
3	Engine Flywheel Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . CAUTION: Refer to Torque-to-Yield Fastener Caution . NOTE: Bolts have adhesive patch and must be tightened to final torque within 5 minutes. Procedure Tighten the NEW flywheel bolts in the sequence shown. Tighten the bolts a first pass to 20 N.m (15 lb ft). Tighten the bolts a second pass to 30 N.m (22 lb ft). Using the EN-45059 angle meter, tighten the bolt a final pass 70 degrees. Remove EN-652 holder once final torque is achieved. Special Tools EN-45059 Angle Meter Equivalent regional tools: Special Tools .
4	Clutch Pressure and Driven Plate Assembly Procedure Install the Clutch Pressure and Drive Plate Assembly. Refer to Clutch Pressure and Driven Plate Replacement .
