Upper Engine Block Disassemble

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

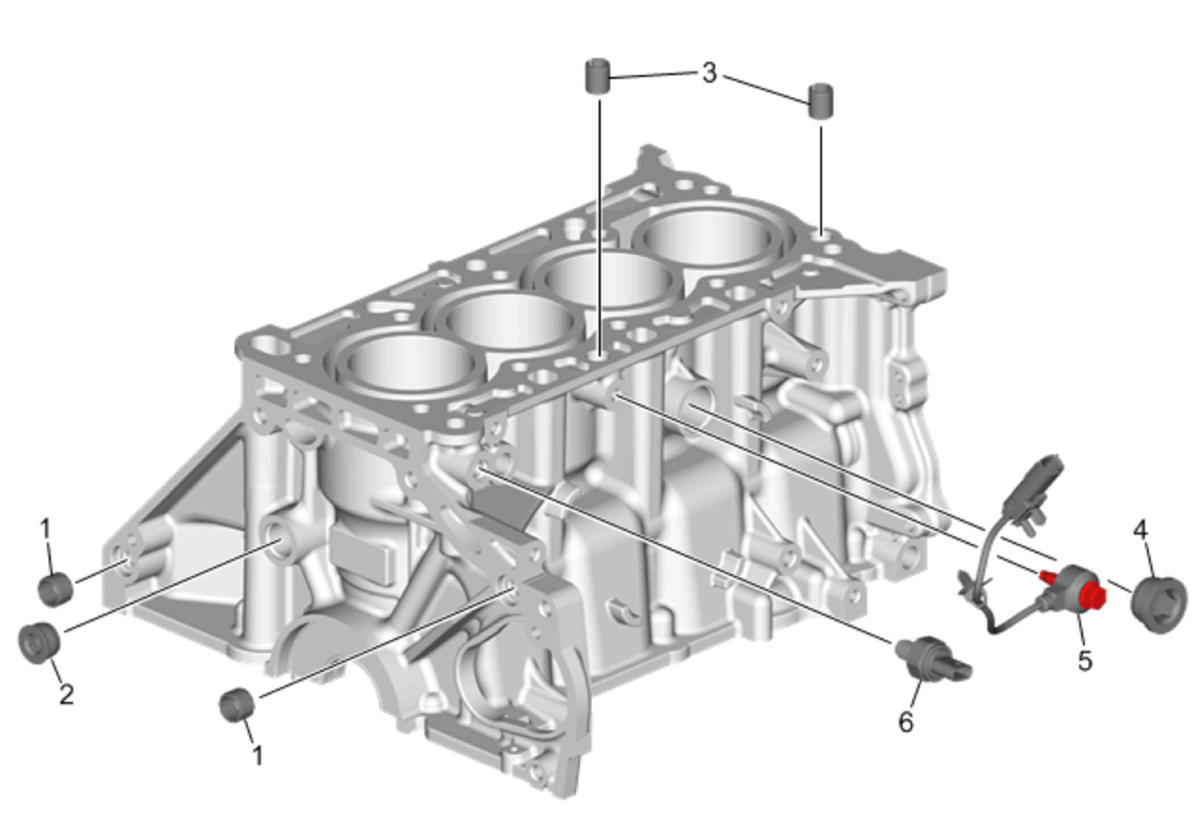

Fig 1: Upper Engine Block Components

Courtesy of GENERAL MOTORS COMPANY

Upper Engine Block Disassemble 1

Callout	Component Name
1	Transmission Locating Pin (Qty: 2)
2	Engine Block Oil Gallery Plug
3	Cylinder Head Locating Pin (Qty: 2)
4	Engine Block Coolant Drain Hole Plug
5	Knock Sensor
6	Engine Oil Pressure Sensor

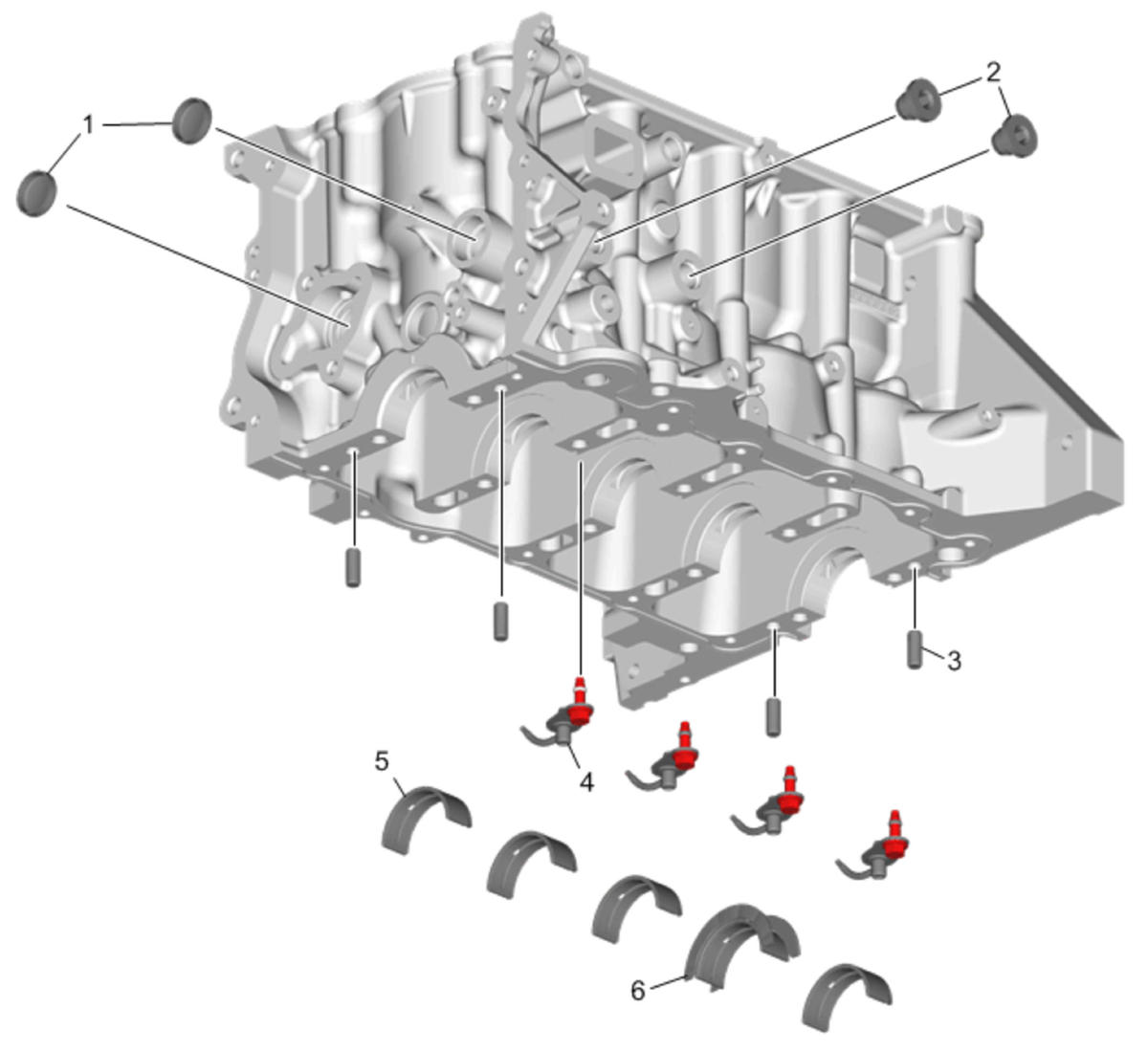

Fig 1: Upper Engine Block Components

Courtesy of GENERAL MOTORS COMPANY

Upper Engine Block Disassemble 2

Callout	Component Name
1	Engine Block Core Hole Plug
2	Engine Block Oil Gallery Plug (Qty: 2)
3	Lower Crankcase Locating Pin (Qty: 4)
4	Piston Oil Nozzle (Qty: 4)
5	Crankshaft Upper Bearing (Qty: 4)
6	Crankshaft Thrust Upper Bearing
