Upper Engine Block Assemble
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

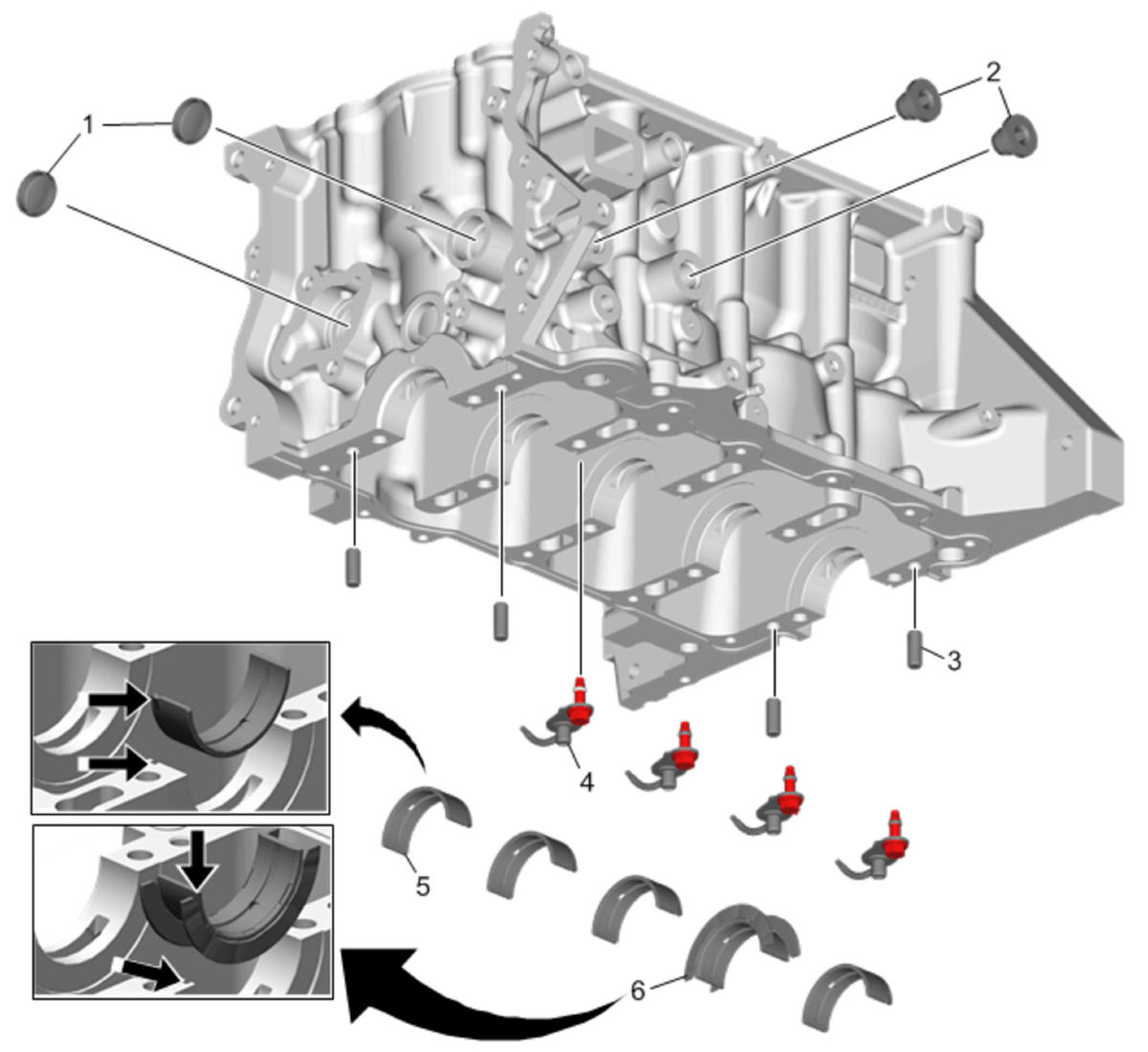

Upper Engine Block Assemble 1
| Callout | Component Name |
|---|---|
| Preliminary Procedure Apply sealant to all plugs prior to installation. Refer to Adhesives, Fluids, Lubricants, and Sealers (Europe LV7)Adhesives, Fluids, Lubricants, and Sealers (North America LV7) . |
|
| 1 | Engine Block Core Hole Plug (Qty: 2) |
| 2 | Engine Block Oil Gallery Plug (Qty: 2) Tighten 65 N.m (48 lb ft) |
| 3 | Lower Crankcase Locating Pin (Qty: 4) |
| 4 | Piston Oil Nozzle (Qty: 4) Tighten 10 N.m (89 lb in) |
| 5 | Crankshaft Upper Bearing (Qty: 4) Procedure: Ensure that the guide lug on the bearing is properly seated to the notch in the engine block for each bearing. Coat the crankshaft bearing shell with engine oil. |
| 6 | Crankshaft Thrust Upper Bearing Procedure: Ensure that the guide lug on the bearing is properly seated to the notch in the engine block. Coat the crankshaft bearing shell with engine oil. |

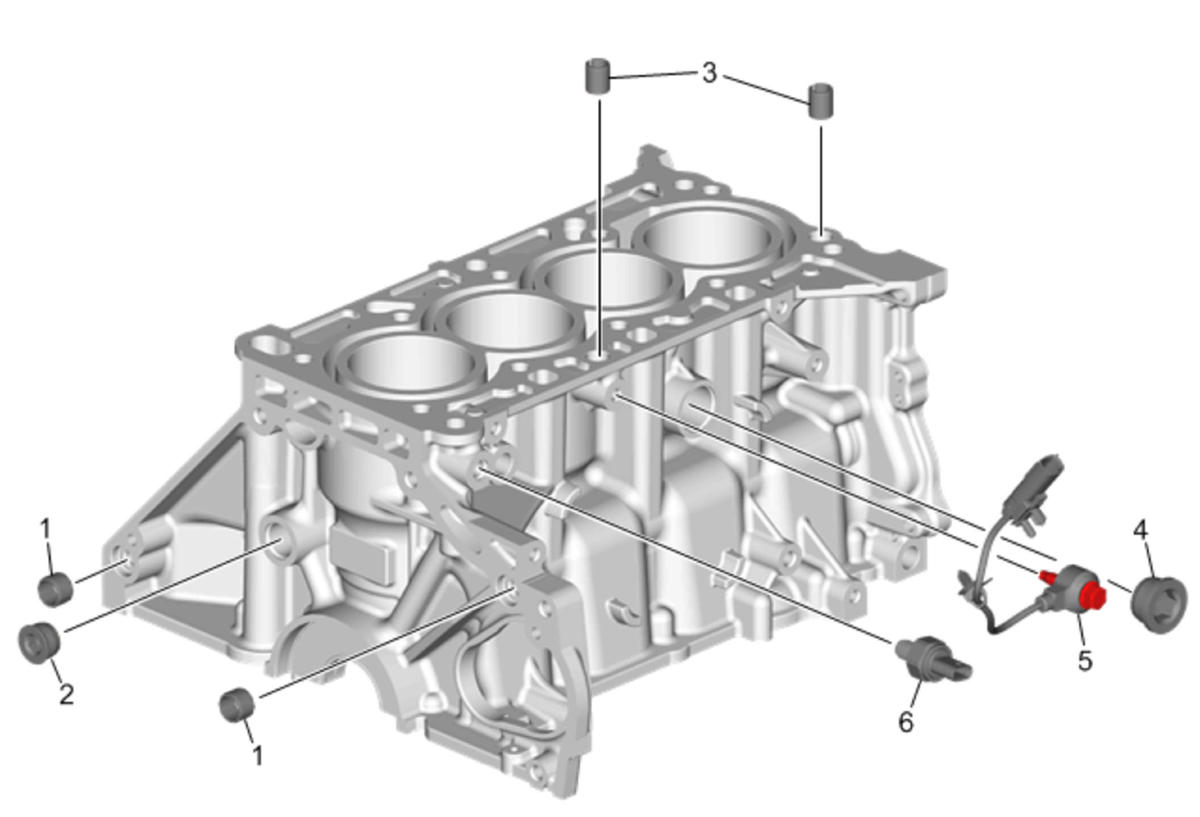

Upper Engine Block Assemble 2
| Callout | Component Name |
|---|---|
| Preliminary Procedure Apply sealant to all plugs prior to installation. Refer to Adhesives, Fluids, Lubricants, and Sealers (Europe LV7)Adhesives, Fluids, Lubricants, and Sealers (North America LV7) . |
|
| 1 | Transmission Locating Pin (Qty: 2) Procedure Ensure Transmission locating pins are properly seated and not damaged. |
| 2 | Engine Block Oil Gallery Plug
CAUTION:
Refer to Component Fastener Tightening Caution . Tighten 65 N.m (48 lb ft) |
| 3 | Cylinder Head Locating Pin (Qty: 2) |
| 4 | Engine Block Coolant Drain Hole Plug Tighten 60 N.m (44 lb ft) |
| 5 | Knock Sensor
CAUTION:
Refer to Fastener Caution . Tighten 25 N.m (18 lb ft) |
| 6 | Engine Oil Pressure Sensor Tighten 35 N.m (29 lb ft) |
