Lower Crankcase Assemble
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Lower Crankcase Assemble

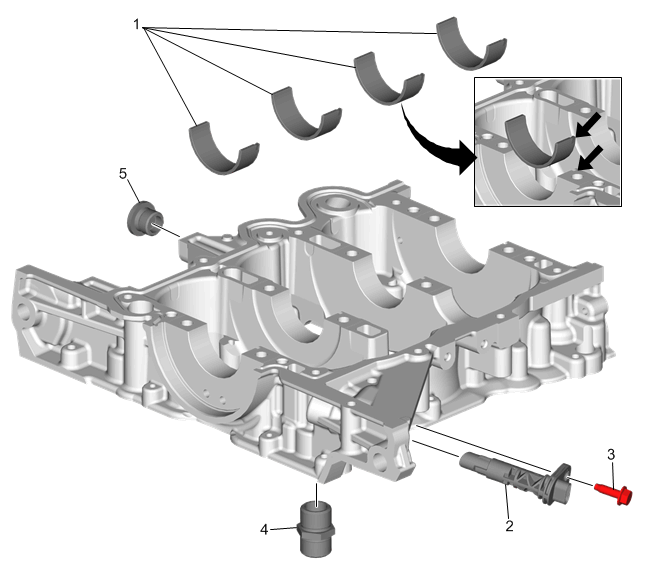

| Callout | Component Name |
|---|---|
| 1 | Crankshaft Lower Bearing (Qty: 4) Procedure: Install the bearings in the lower crankcase, and ensure that the guide lug on the bearing is properly seated to the notch in the lower crankcase for each bearing. Coat the crankshaft bearing shell with engine oil. |
| 2 | Crankshaft Position Sensor |
| 3 | Crankshaft Position Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 4 | Oil Filter Fitting Tighten 55 N.m (41 lb ft) |
| 5 | Oil Pump Housing Plug |
