Cylinder Head Removal (L5Q)
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of GENERAL MOTORS COMPANY

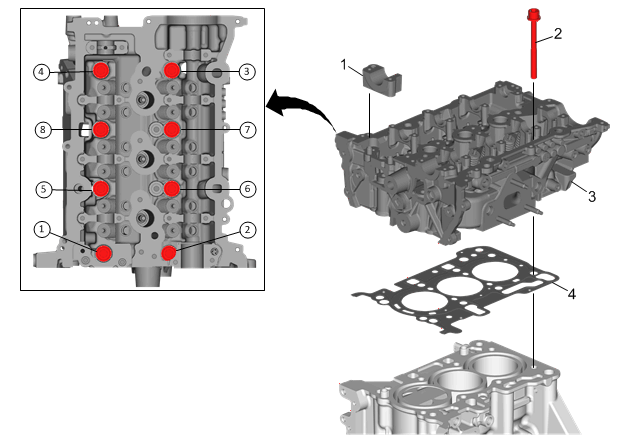

| Callout |
Component Name |
| 1 |
Camshaft Bearing Lower Cap
Procedure
Loosen the lower cap carefully using a suitable tool. |
| 2 |
Cylinder Head Bolt (Qty: 8)
Procedure
Remove the bolts in sequence. DISCARD the bolts. |
| 3 |
Cylinder Head |
| 4 |
Cylinder Head Gasket |
