Cylinder Head Installation (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

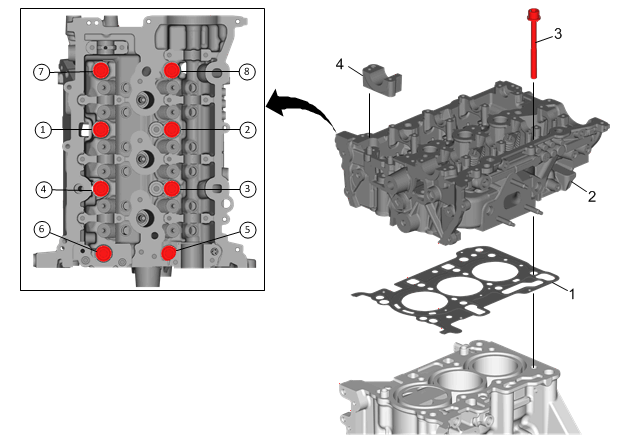

Fig 1: Cylinder Head Components (With Bolt Tightening Sequence)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Cylinder Head Gasket NOTE: Ensure that the cylinder head and the engine block sealing surfaces are clear of oil, grease, and old gasket material.
2	Cylinder Head
3	Cylinder Head Bolt (Qty: 8) CAUTION: Refer to Fastener Caution . CAUTION: Refer to Torque-to-Yield Fastener Caution . Procedure Tighten the NEW cylinder head bolts in the sequence shown. Tighten the bolts a first pass to 30 N.m (22 lb ft). Using the EN-45059 angle meter, tighten the bolts a final pass to 240 degrees. Special Tools EN-45059 Angle Meter Equivalent regional tools: Special Tools .
4	Camshaft Bearing Lower Cap
