Cylinder Head Disassemble

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

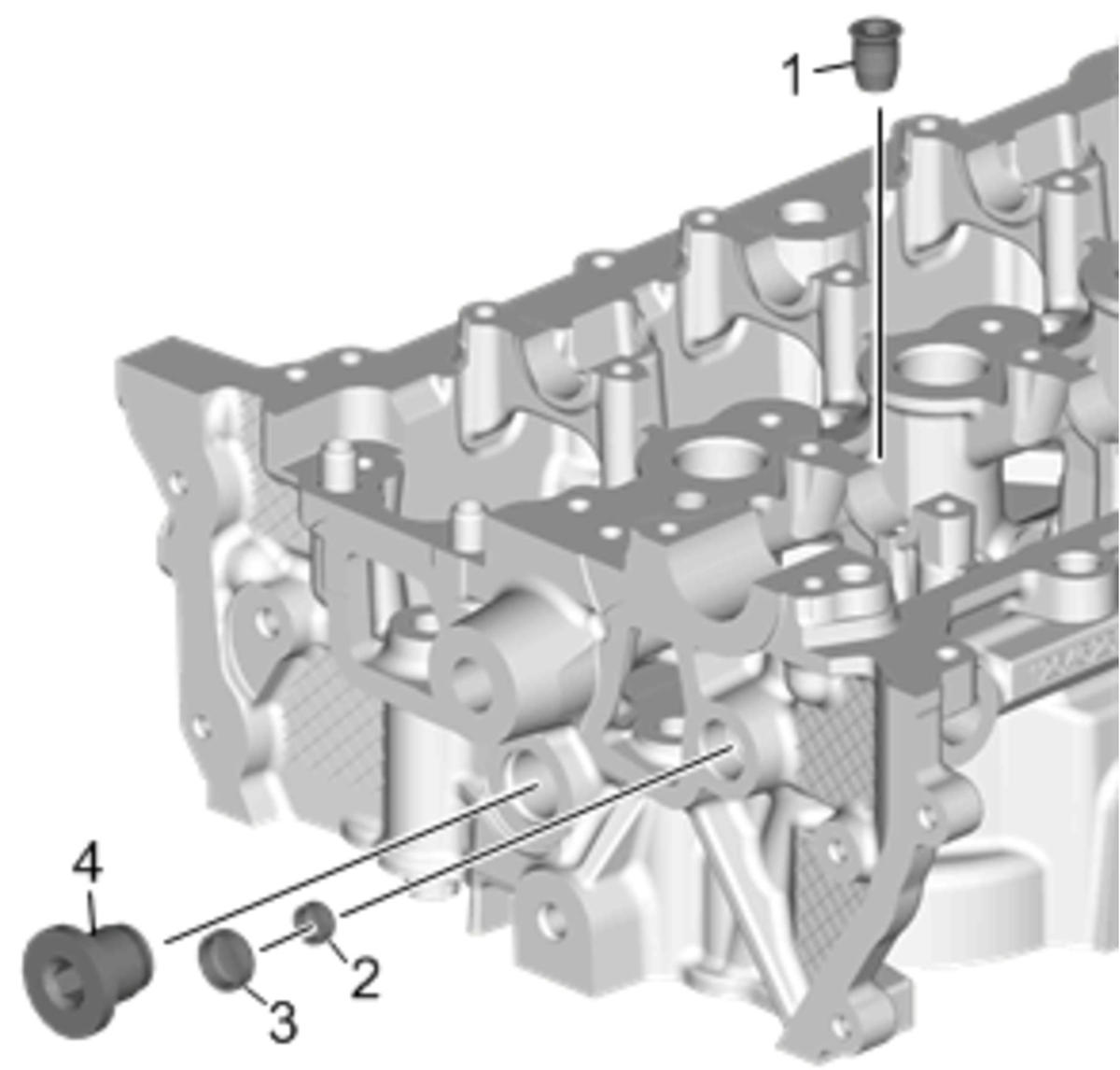

    Fig 1: Cylinder Head Components
    GM4179382Courtesy of GENERAL MOTORS COMPANY
  1. Remove 3 cylinder head core hole plugs (1) from the top of the cylinder head.
  2. Remove the cylinder head oil gallery plug (3).
  3. Remove the cylinder head oil gallery restrictor (2).
  4. Remove the cylinder head core hole plug (4) from the front of the cylinder head.

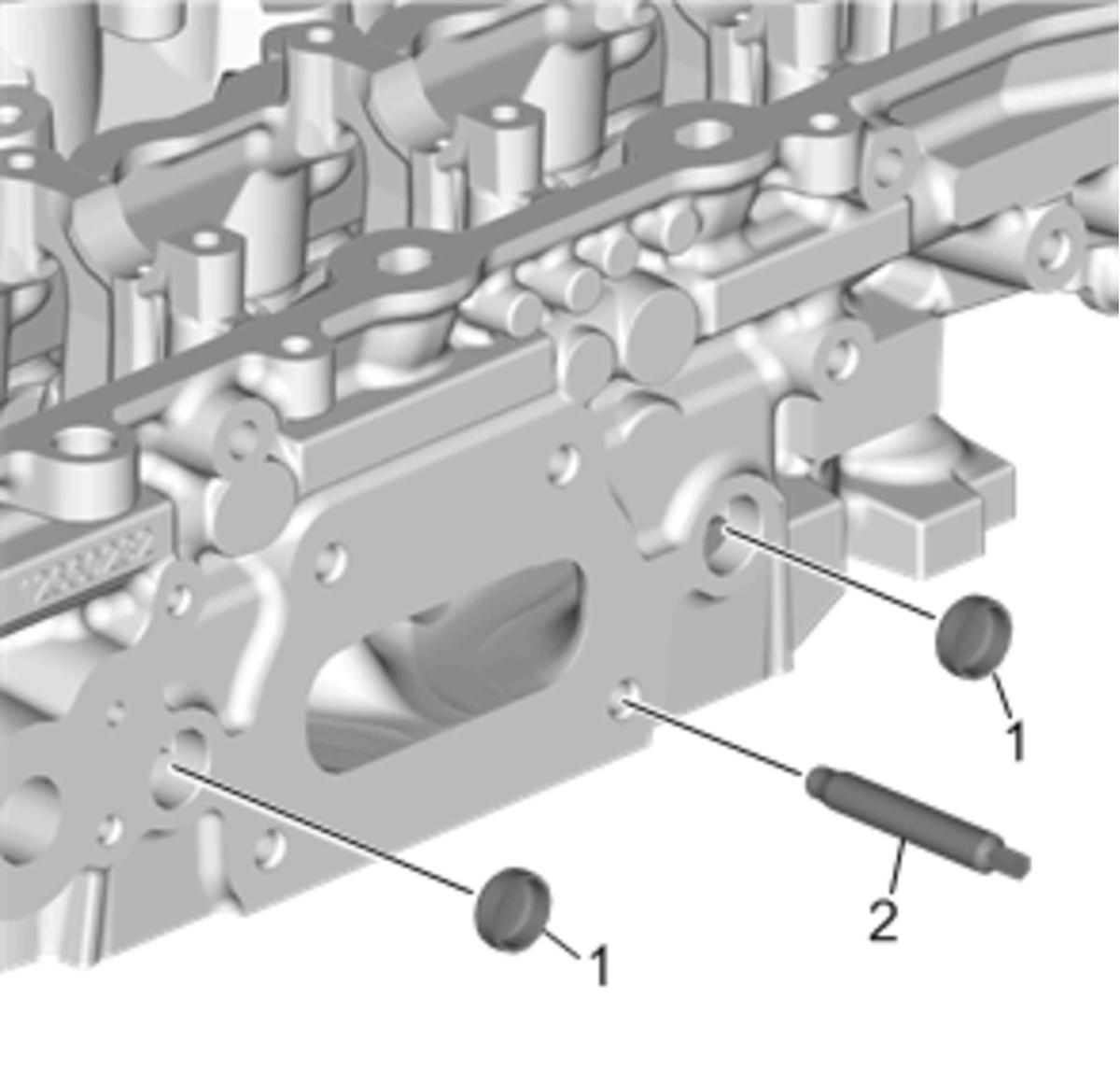

    5. Fig 2: Side Cylinder Head Oil Gallery Plugs And Studs
    GM4171328Courtesy of GENERAL MOTORS COMPANY
  5. Remove 2 cylinder head oil gallery plugs (1) from the side of the cylinder head.
  6. Remove 4 cylinder head studs (2). Discard the studs.

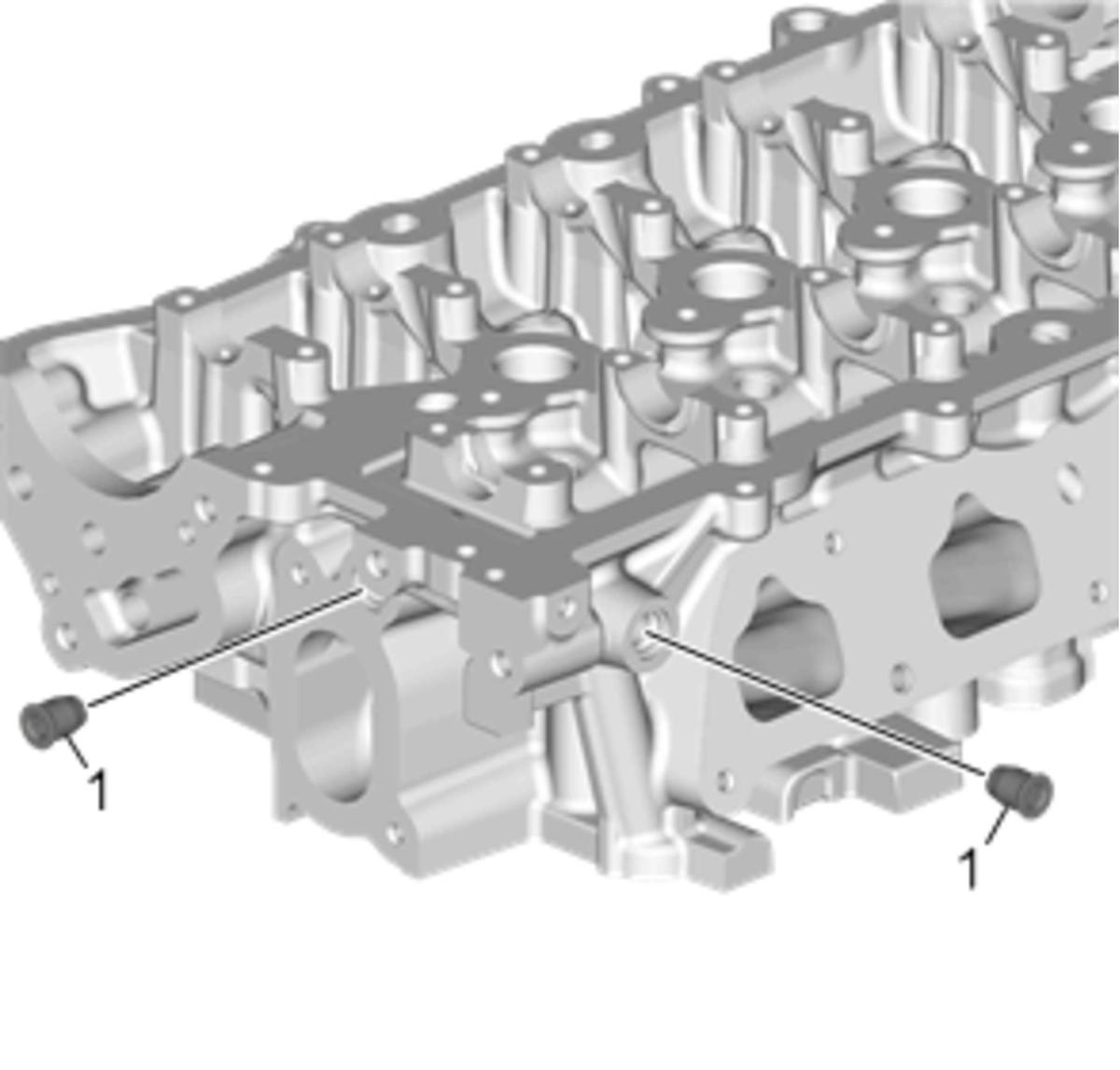

    7. Fig 3: Rear Cylinder Head Core Hole Plugs
    GM4179383Courtesy of GENERAL MOTORS COMPANY
  7. Remove the 2 cylinder head core hole plugs (1) from the rear of the cylinder head.
