Cylinder Head Disassemble

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

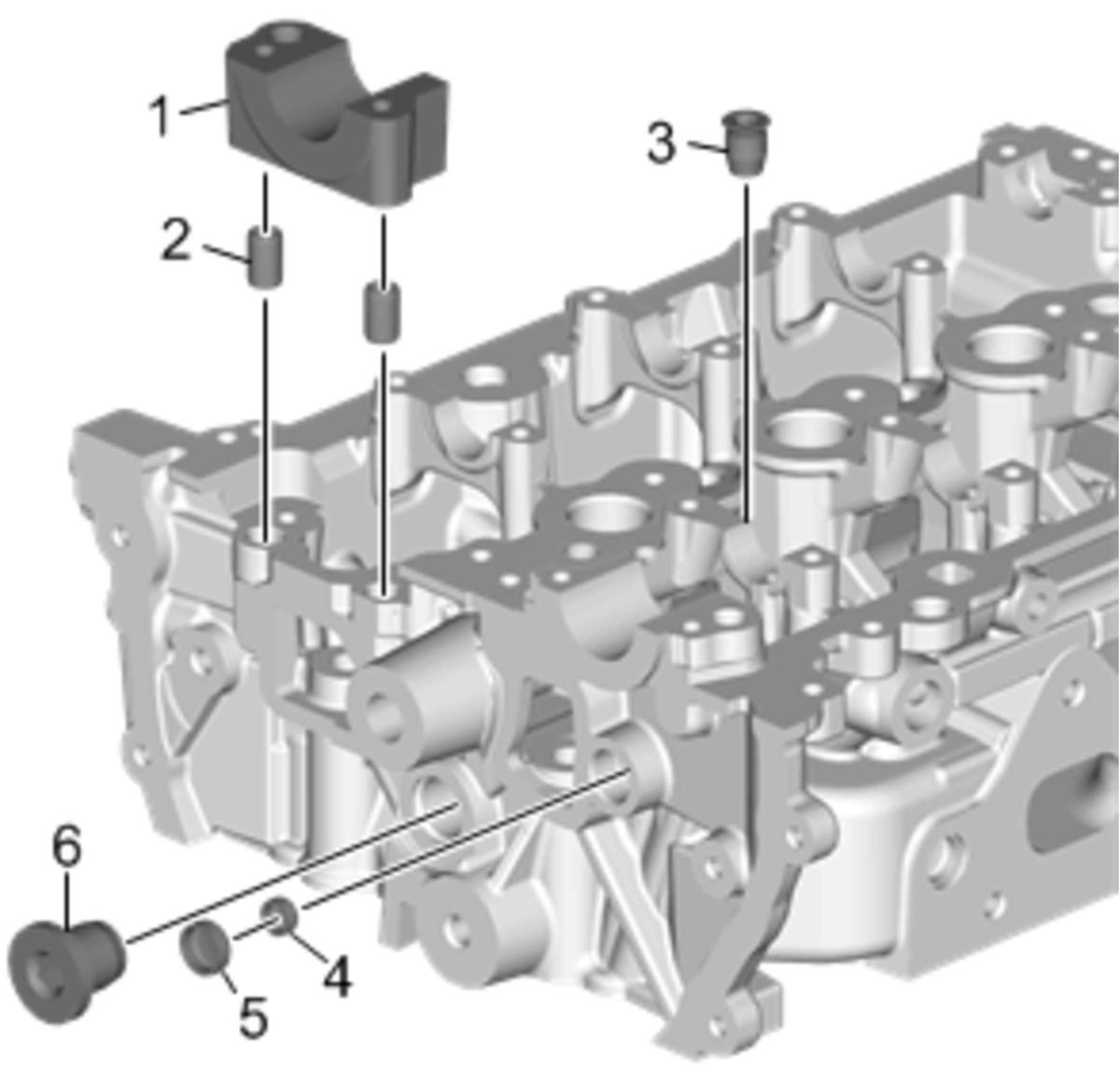

    Fig 1: Cylinder Head Components
    GM4064799Courtesy of GENERAL MOTORS COMPANY
  1. Remove the camshaft bearing lower cap (1).
  2. Remove 2 camshaft bearing front cap locating pins (2).
  3. Remove 2 cylinder head core hole plugs (3) from the top of the cylinder head.
  4. Remove the cylinder head oil gallery plug (5) from the front of the cylinder head.
  5. Remove the cylinder head oil restrictor plug (4).
  6. Remove the cylinder head plug (6).

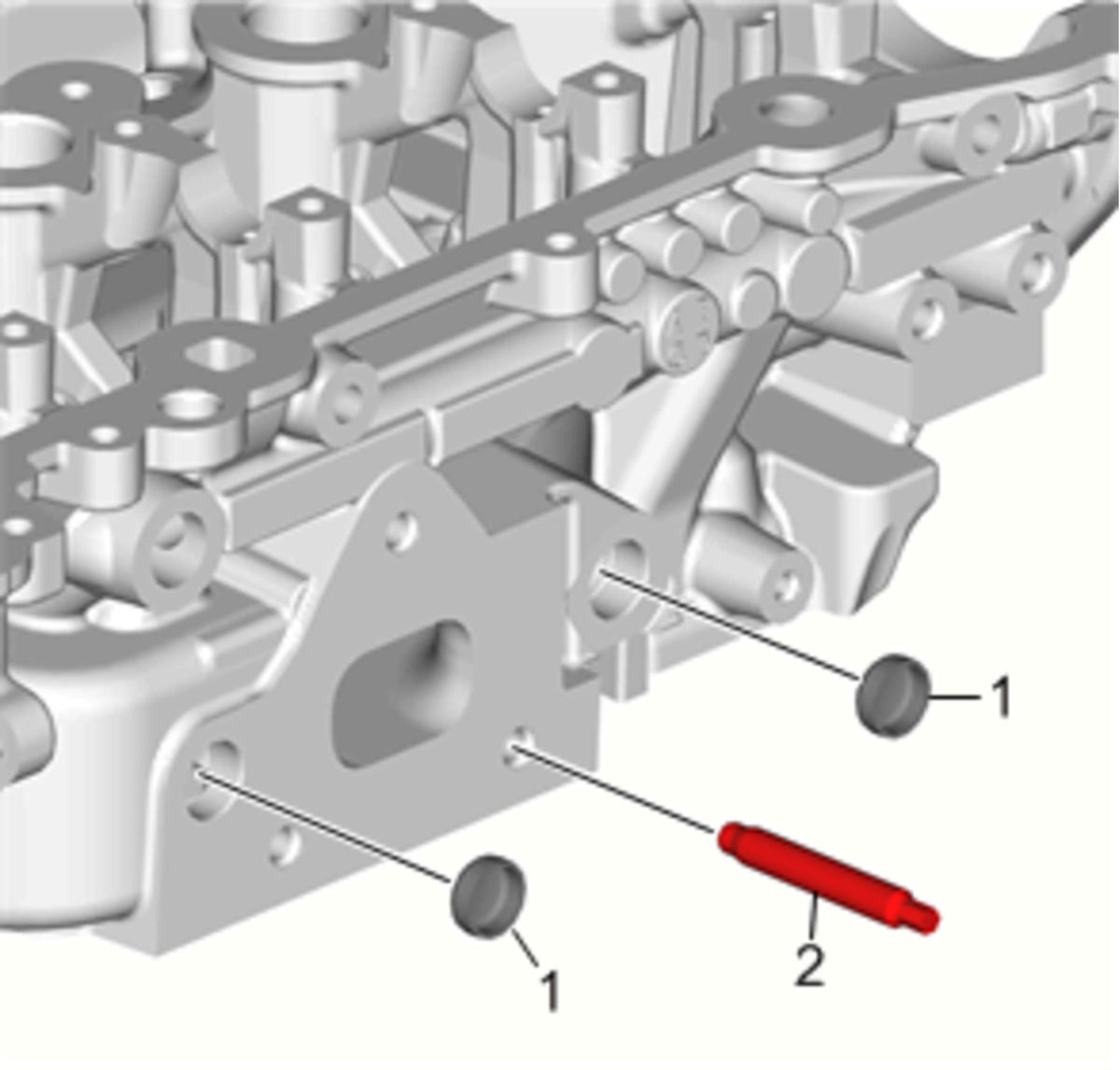

    7. Fig 2: Cylinder Head Oil Gallery Plugs And Studs
    GM4064801Courtesy of GENERAL MOTORS COMPANY
  7. Remove 2 cylinder head oil gallery plugs (1) from the side of the cylinder head.
  8. Remove 3 cylinder head studs (2). Discard the studs.

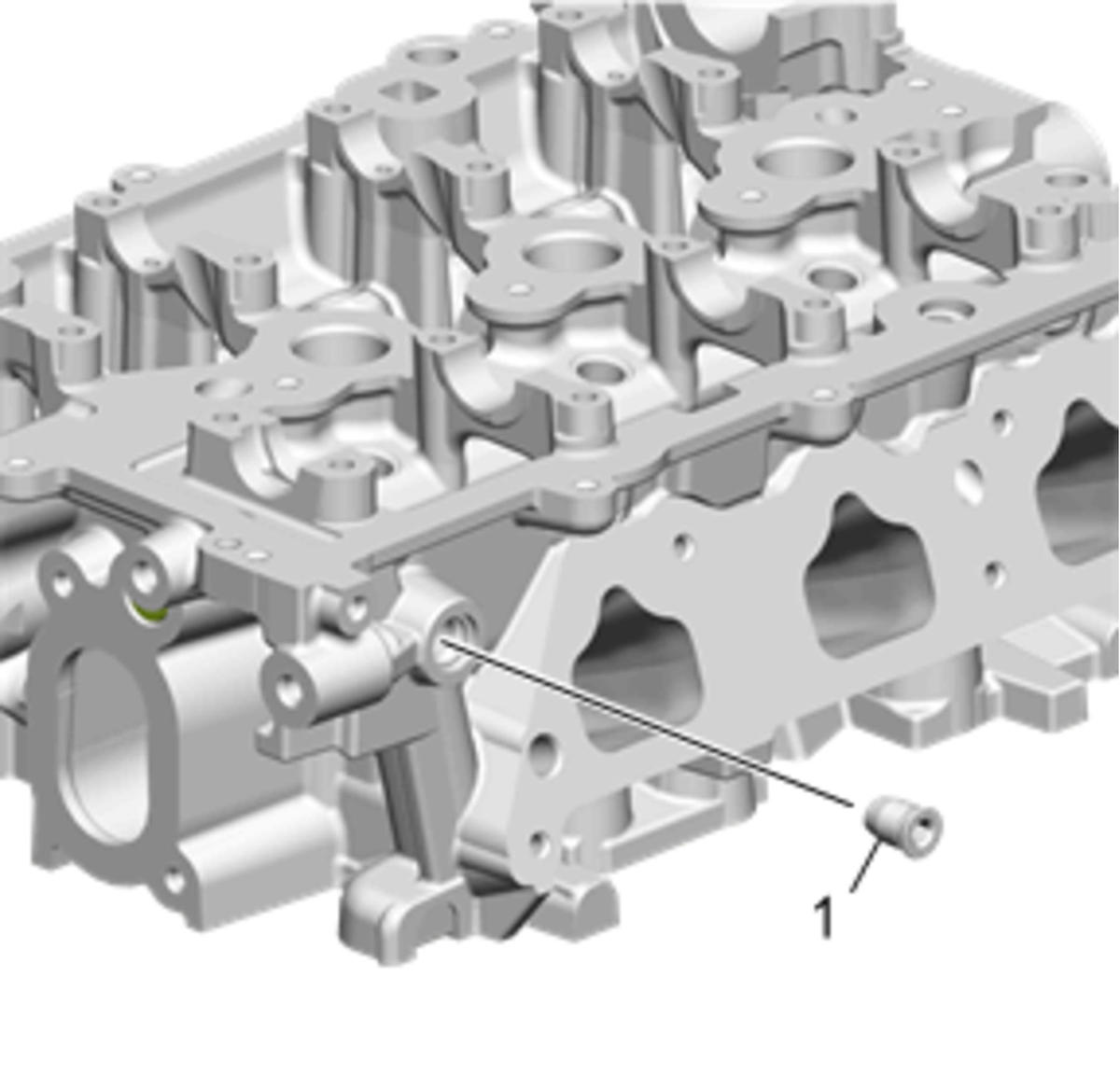

    9. Fig 3: Side Cylinder Head Core Hole Plug
    GM4064804Courtesy of GENERAL MOTORS COMPANY
  9. Remove the cylinder head core hole plug (1) from the side of the cylinder head.

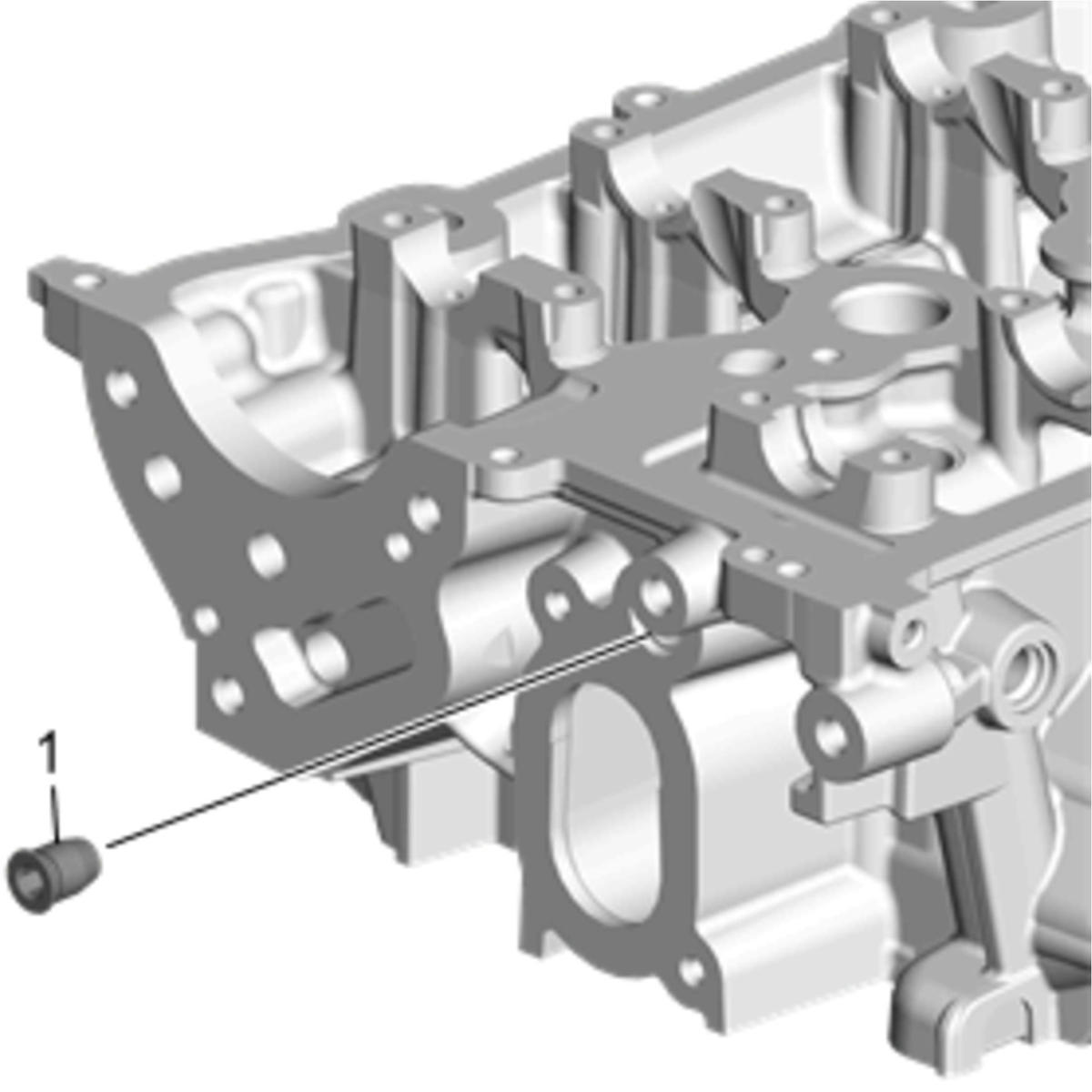

    10. Fig 4: Rear Cylinder Head Core Hole Plug
    GM4064805Courtesy of GENERAL MOTORS COMPANY
  10. Remove the cylinder head core hole plug (1) from the rear of the cylinder head.
