Hydraulic Valve Lash Adjuster Arm Cleaning and Inspection
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

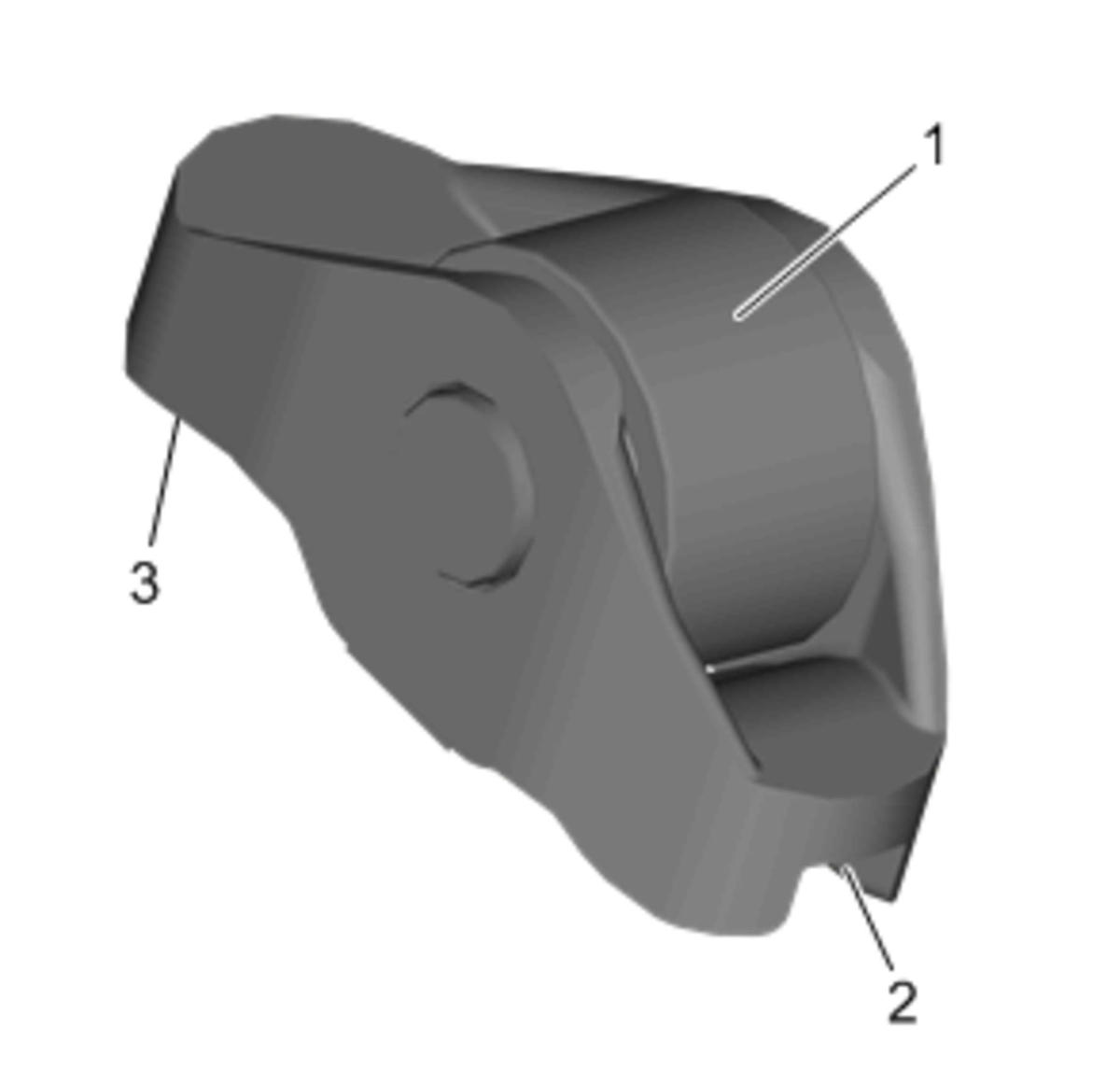

- Inspect the hydraulic valve lash adjuster arm roller (1) for the following:
- Flat spots
- Excessive scoring and pitting
- Ensure the roller spins freely
- Inspect the hydraulic valve lash adjuster arm valve tip area (2).
- Inspect the hydraulic valve lash adjuster pivot area (3).
- Replace the hydraulic valve lash adjuster arms as necessary.
