Crankshaft Front Oil Seal Removal

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

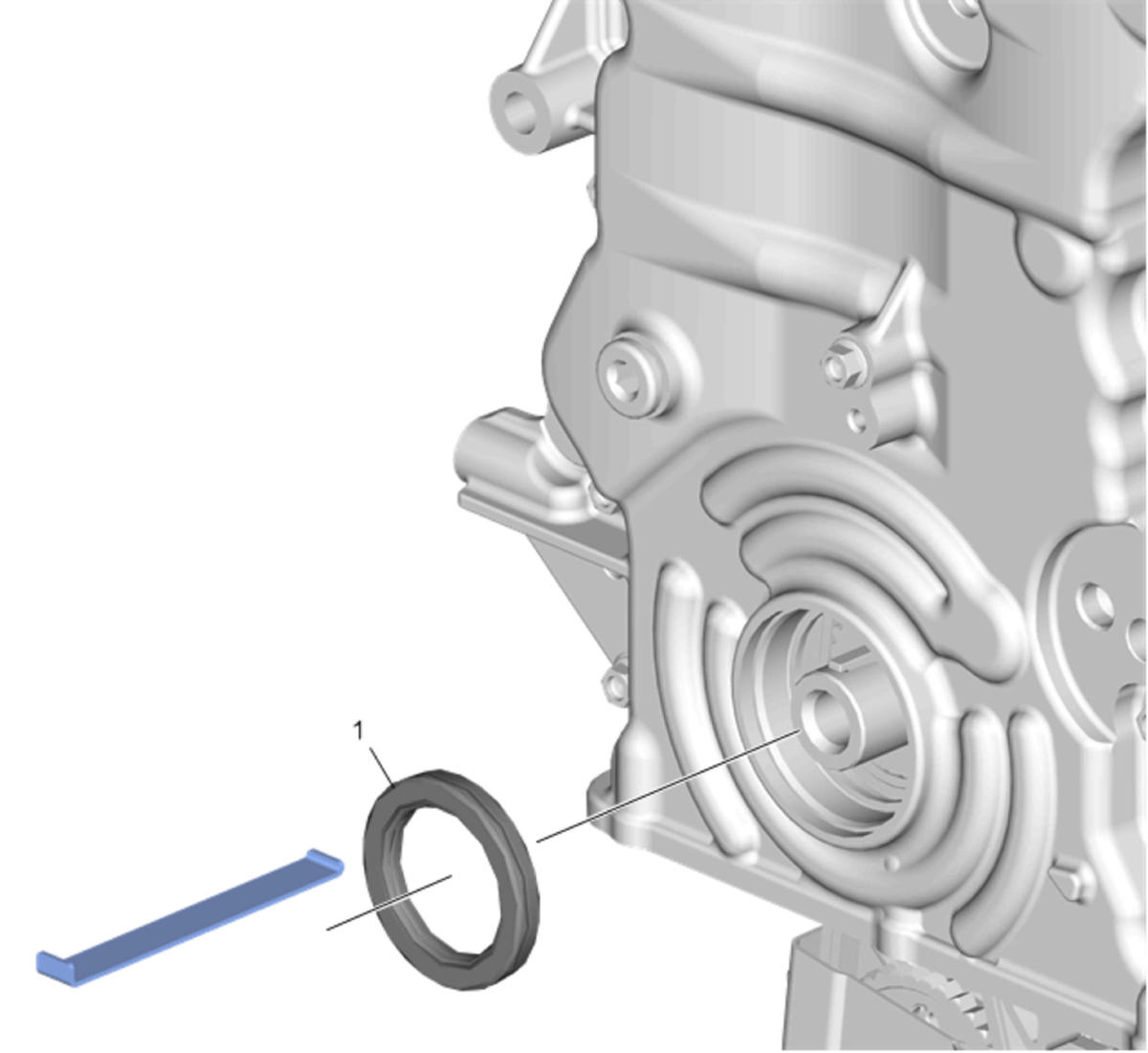

Fig 1: Crankshaft Front Oil Seal
GM4051882Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Crankshaft Front Oil Seal
Procedure
DISCARD the seal.
Special Tools
EN-51096  Crankshaft Seal Remover
Equivalent regional tools: Special Tools .
