Crankshaft Front Oil Seal Installation

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

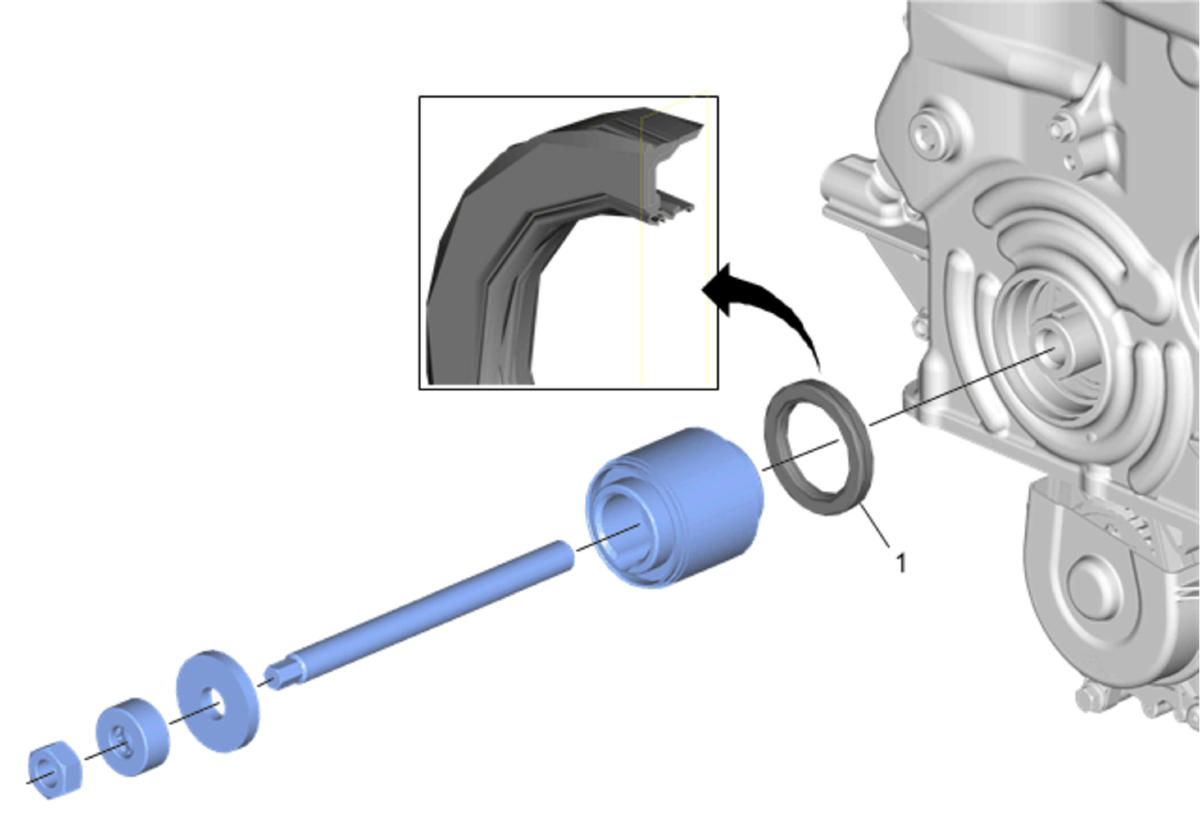

Fig 1: Crankshaft Front Oil Seal

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Crankshaft Front Oil Seal Procedure NOTE: The oil seal must be installed in the correct direction. The side that faces out will have "this side out" printed on it. The design of the seal determines which end of the EN 51368 installer is used. Use the end of the installer that matches the design of the seal, as shown. Lubricate the outside diameter of the new crankshaft seal with clean engine oil. Determine which end of the EN-51368 installer will be used and install the seal on it. Install the EN-51368 installer over the crankshaft. Install the EN-51368 screw, large washer, bearing, and nut. Counter-hold the screw, and tighten the nut to install the seal. Special Tools EN-51368 Front Crankshaft Seal Installer Equivalent regional tools: Special Tools .

Callout

Component Name

Crankshaft Front Oil Seal

Procedure

NOTE:

The oil seal must be installed in the correct direction. The side that faces out will have "this side out" printed on it. The design of the seal determines which end of the EN 51368 installer is used. Use the end of the installer that matches the design of the seal, as shown.

Lubricate the outside diameter of the new crankshaft seal with clean engine oil.
Determine which end of the EN-51368 installer will be used and install the seal on it.
Install the EN-51368 installer over the crankshaft.
Install the EN-51368 screw, large washer, bearing, and nut.
Counter-hold the screw, and tighten the nut to install the seal.

Special Tools
EN-51368 Front Crankshaft Seal Installer
Equivalent regional tools: Special Tools .
