Crankshaft Balancer Removal (Europe)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

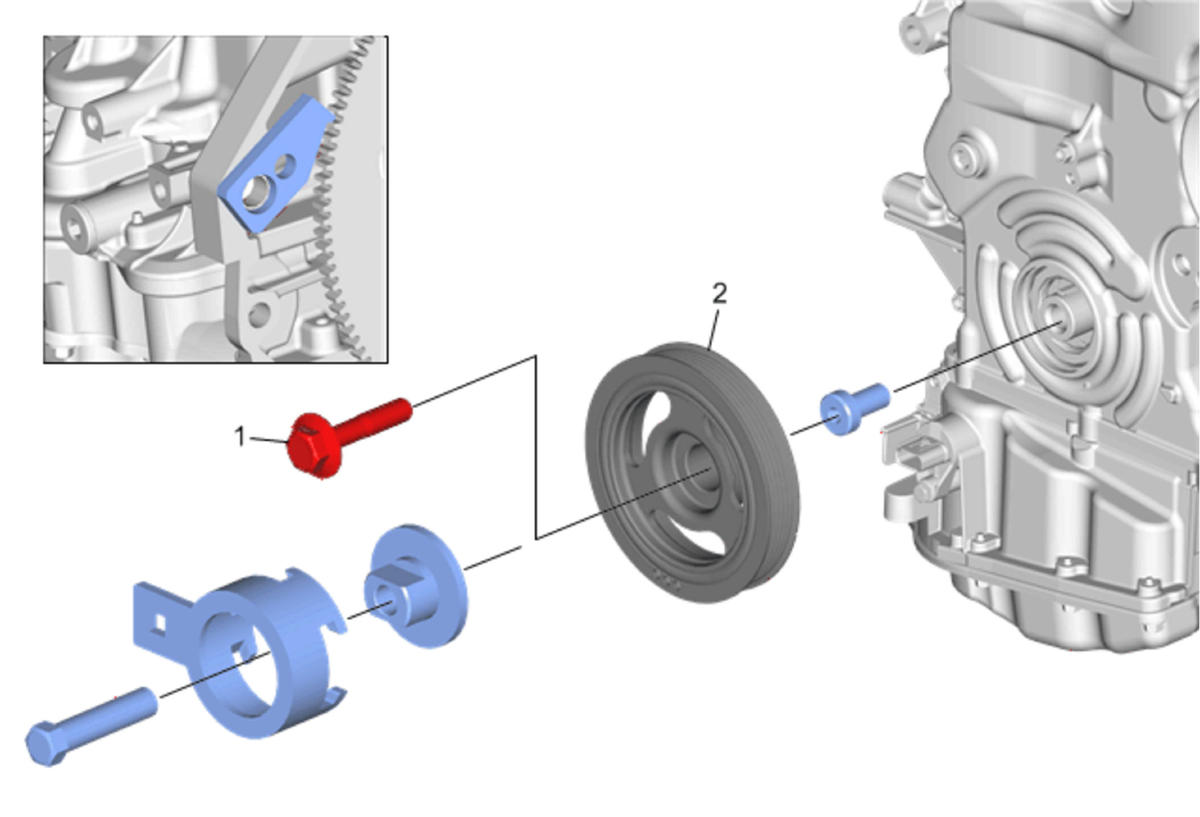

Fig 1: Crankshaft Balancer

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Install EN-652 holder, lock the flywheel via the starter ring gear. Special Tools EN-652 Flywheel Holder Equivalent regional tools: Special Tools .
1	Crankshaft Balancer Bolt
2	Crankshaft Balancer Procedure Install the EN-44226-5 protector onto the crankshaft. Install EN-44226-1 holding body and EN-44226-2 remover plate with remover bolt onto the balancer. Counter hold the EN-44226-2 remover plate and turn the remover screw to remove the balancer. Special Tools EN-44226 Crankshaft Balancer Remover EN-44226-5 Crankshaft Protector Equivalent regional tools: Special Tools .

Callout

Component Name

Preliminary Procedure
Install EN-652 holder, lock the flywheel via the starter ring gear.
Special Tools
EN-652 Flywheel Holder
Equivalent regional tools: Special Tools .

Crankshaft Balancer Bolt

Crankshaft Balancer

Procedure

Install the EN-44226-5 protector onto the crankshaft.
Install EN-44226-1 holding body and EN-44226-2 remover plate with remover bolt onto the balancer.
Counter hold the EN-44226-2 remover plate and turn the remover screw to remove the balancer.

Special Tools

EN-44226 Crankshaft Balancer Remover
EN-44226-5 Crankshaft Protector

Equivalent regional tools: Special Tools .
