Camshaft Timing Chain Removal (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

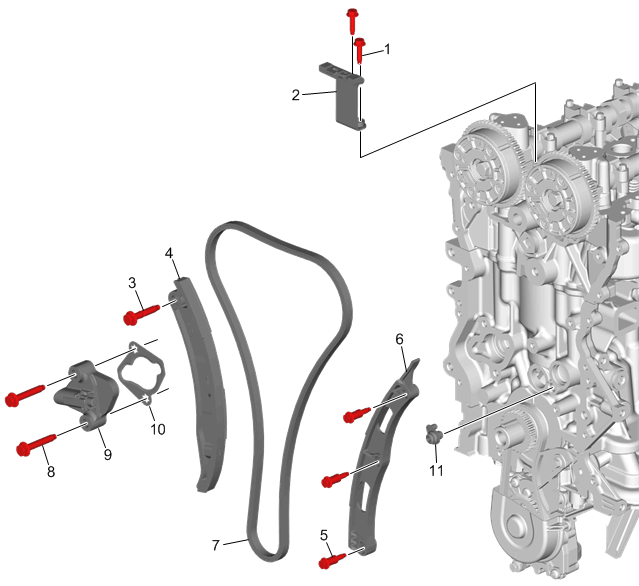

Fig 1: Camshaft Timing Chain

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Ensure the tensioner is fully retracted. Adjust cylinder 1 to TDC.
1	Timing Chain Guide Bolt (Qty: 2)
2	Timing Chain Guide
3	Timing Chain Tensioner Shoe Bolt
4	Timing Chain Tensioner Shoe
5	Timing Chain Guide Bolt (Qty: 3)
6	Timing Chain Guide
7	Timing Chain
8	Timing Chain Tensioner Bolt (Qty: 2)
9	Timing Chain Tensioner
10	Timing Chain Tensioner Gasket
11	Timing Chain Oil Nozzle
