Camshaft Timing Chain Installation (L5Q)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

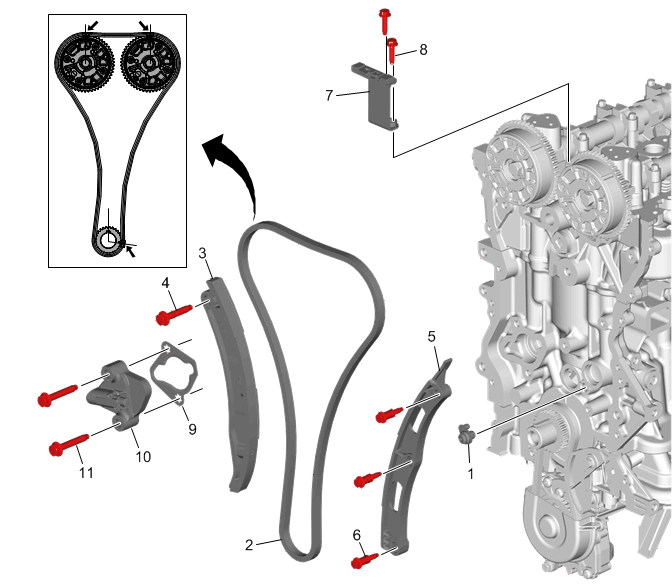

Fig 1: Camshaft Timing Chain Components

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Timing Chain Oil Nozzle CAUTION: Refer to Component Fastener Tightening Caution . Tighten 15 N.m (11 lb ft)
2	Timing Chain NOTE: Ensure the actuator timing marks and the crankshaft sprocket keyway are at the 12 O'Clock position. Procedure: NOTE: Ensure the correct timing link is aligned with the timing mark. The color of the actuator timing links are the same, and the color of the crankshaft sprocket timing link is unique. Align the first timing chain link with the intake actuator timing mark. Align the second timing chain link with the exhaust actuator timing mark. Align the final timing chain link with the crankshaft sprocket timing mark.
3	Timing Chain Tensioner Shoe
4	Timing Chain Tensioner Shoe Bolt CAUTION: Refer to Fastener Caution . Tighten 25 N.m (18 lb ft)
5	Timing Chain Guide
6	Timing Chain Guide Bolt (Qty: 3) Tighten 10 N.m (89 lb in)
7	Timing Chain Guide
8	Timing Chain Guide Bolt (Qty: 2) Tighten 10 N.m (89 lb in)
9	Timing Chain Tensioner Gasket
10	Timing Chain Tensioner NOTE: Ensure the tensioner is fully retracted prior to installation.
11	Timing Chain Tensioner Bolt (Qty: 2) Tighten 25 N.m (18 lb ft)
