Camshaft Cover and Gasket Removal
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Camshaft Cover and Gasket Removal

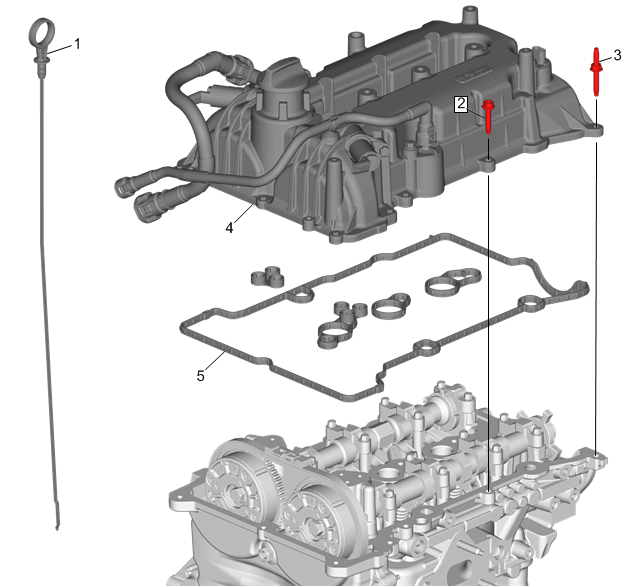

| Callout | Component Name |
|---|---|
| 1 | Oil Level Indicator |
| 2 | Camshaft Cover Bolt (Qty: 13) |
| 3 | Camshaft Cover Stud (Qty: 2) |
| 4 | Camshaft Cover Procedure Ensure proper use of room temperature vulcanizing (RTV) sealant. Refer to Use of Room Temperature Vulcanizing (RTV) and Anaerobic Sealant |
| 5 | Camshaft Cover Gasket |
