Camshaft Cover Components Removal

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

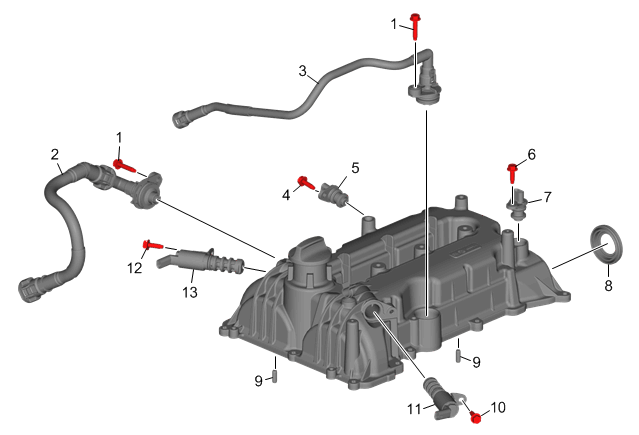

Fig 1: Camshaft Cover Components
GM4203621Courtesy of GENERAL MOTORS COMPANY
Camshaft Cover Components Removal

Callout Component Name
1 Positive Crankcase Ventilation Valve Bolt (Qty: 2)

Procedure

    NOTE:

    Discard the bolt.

  1. Using a suitable tool, cut a slot in the tamper-resistant positive crankcase ventilation valve bolt head.
  2. Remove the bolt with a flat-bladed tool and discard.
2 Positive Crankcase Ventilation Tube with Positive Crankcase Ventilation Valve
NOTE:

Discard the tube and valve.
3 Positive Crankcase Ventilation Tube with Positive Crankcase Ventilation Valve
NOTE:

Discard the tube and valve.
4 Camshaft Position Sensor Bolt
5 Intake Camshaft Position Sensor
6 Camshaft Position Sensor Bolt
7 Exhaust Camshaft Position Sensor
8 Vacuum Pump Seal
Special Tools
EN-51096  Seal Remover
Equivalent regional tools: Special Tools .
9 Camshaft Cover Locating Pin (Qty: 2)
10 Camshaft Position Actuator Solenoid Valve Bolt
11 Camshaft Position Actuator Solenoid Valve
12 Camshaft Position Actuator Solenoid Valve Bolt
13 Camshaft Position Actuator Solenoid Valve
