Camshaft Cover Components Installation - Top
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

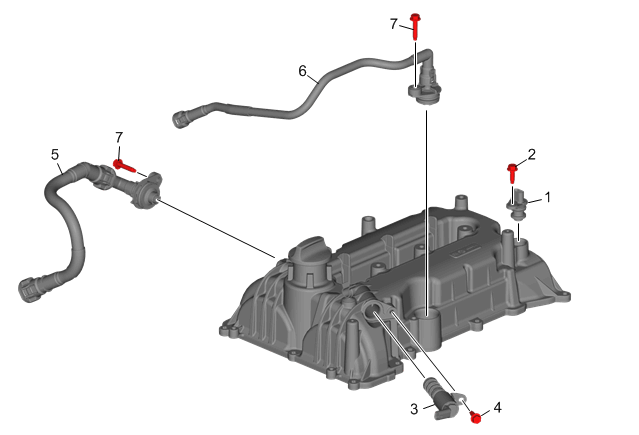

Camshaft Cover Components Installation - Top
| Callout | Component Name |
|---|---|
| 1 | Exhaust Camshaft Position Sensor |
| 2 | Camshaft Position Sensor Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Camshaft Position Actuator Solenoid Valve |
| 4 | Camshaft Position Actuator Solenoid Valve Bolt Tighten 10 N.m (89 lb in) |
| 5 | Positive Crankcase Ventilation Tube with Positive Crankcase Ventilation Valve
NOTE:
Use a new tube and valve. |
| 6 | Positive Crankcase Ventilation Tube with Positive Crankcase Ventilation Valve
NOTE:
Use a new tube and valve. |
| 7 | Positive Crankcase Ventilation Valve Bolt (Qty: 2)
NOTE:
Use a NEW bolt. Tighten 10 N.m (89 lb in) Special Tools EN-50956 Tamper Proof Drive Bit Equivalent regional tools: Special Tools . |
