Camshaft Cover Components Installation - Bottom
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Camshaft Cover Components Installation - Bottom

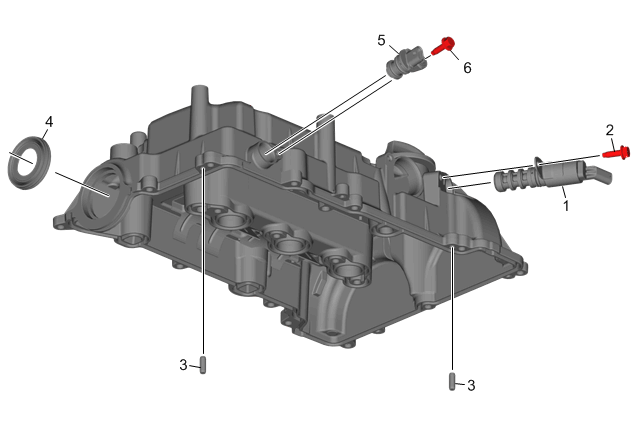

| Callout | Component Name |
|---|---|
| 1 | Camshaft Position Actuator Solenoid Valve |
| 2 | Camshaft Position Actuator Solenoid Valve Bolt
CAUTION:
Refer to Fastener Caution . Tighten 10 N.m (89 lb in) |
| 3 | Camshaft Cover Locating Pin (Qty: 2) |
| 4 | Vacuum Pump Seal
NOTE:
Use a NEW seal. Special Tools EN-45866 Seal Installer Equivalent regional tools: Special Tools . |
| 5 | Intake Camshaft Position Sensor |
| 6 | Camshaft Position Sensor Bolt Tighten 10 N.m (89 lb in) |
