Automatic Transmission Flex Plate Removal (Europe)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

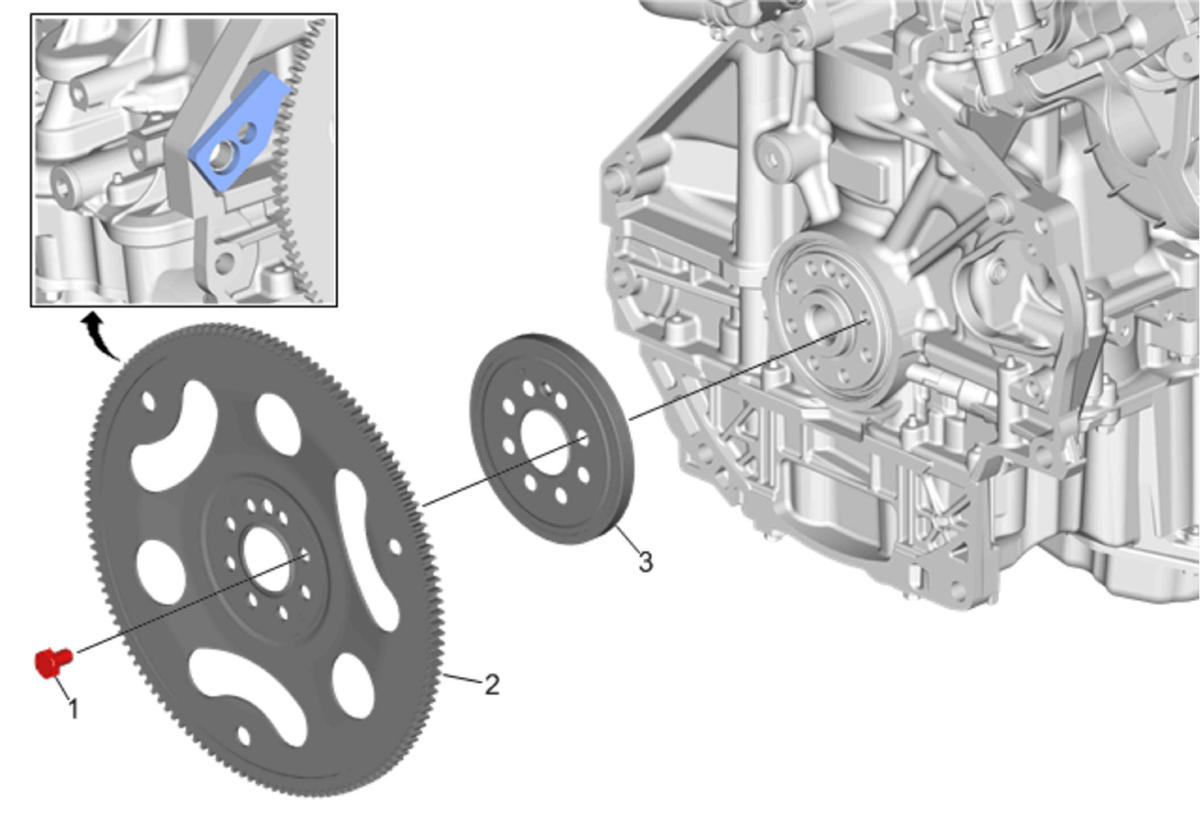

Fig 1: Automatic Transmission Flex Plate
GM3973907Courtesy of GENERAL MOTORS COMPANY
Callout Component Name

Preliminary Procedure

  1. Install EN-652  holder, lock the flywheel via the starter ring gear.
Special Tools EN-652  Flywheel HolderEquivalent regional tools: Special Tools .
1 Automatic Transmission Flex Plate Bolt (Qty: 8)
NOTE:

Discard the bolts.
2 Automatic Transmission Flex Plate
3 Crankshaft Position Sensor Reluctor Ring
