Section 76 (Power Outlets)
>>
Schematic Wiring Diagrams
>>
Cigar Lighter/Power Outlet Wiring Schematics
>>
Accessory Power Outlets
Accessory Power Outlets
WARNING:
This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

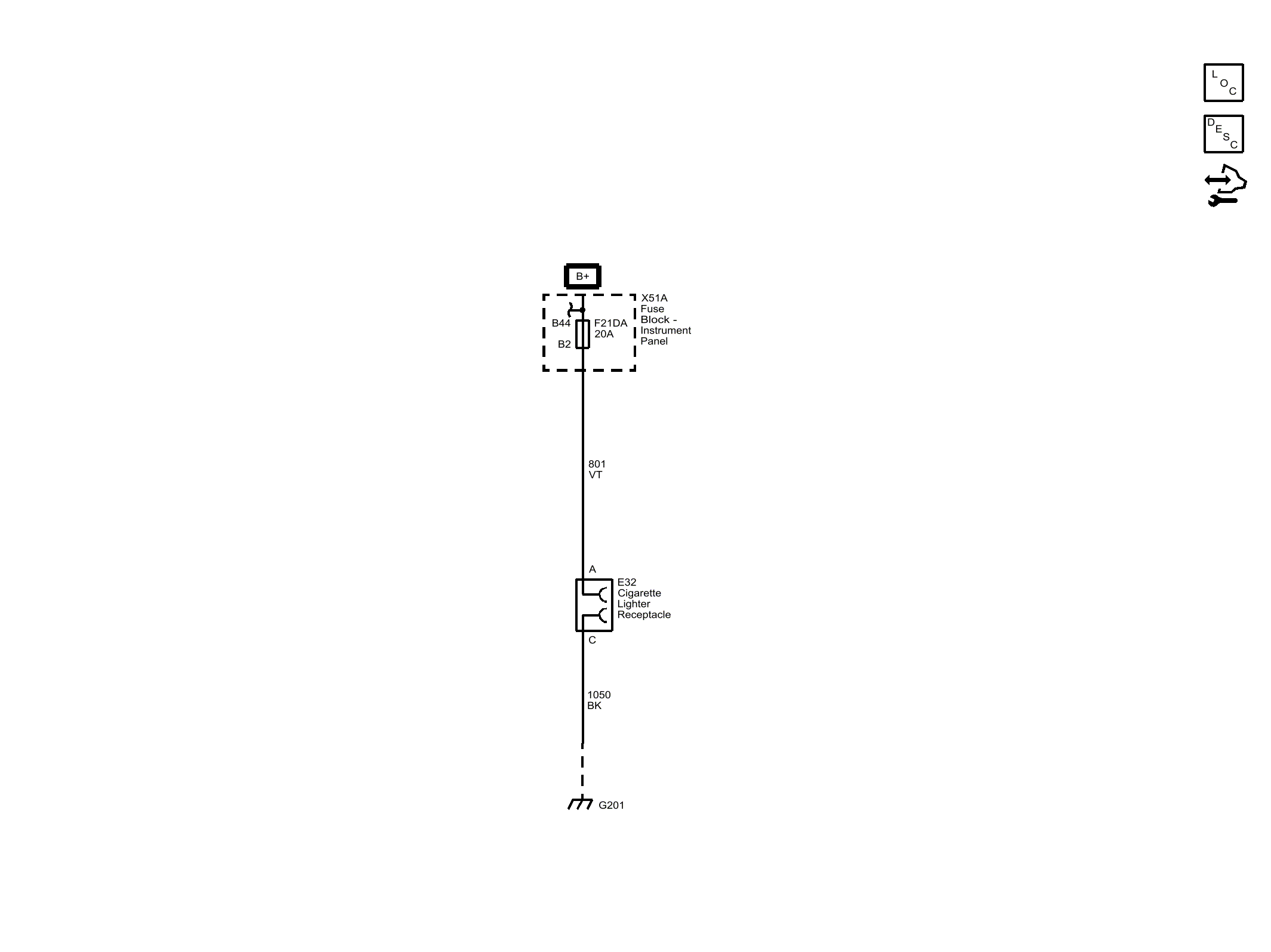

Fig 1: Accessory Power Outlets
Courtesy of GENERAL MOTORS COMPANY
