Installation Procedure

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
  1. Install the brake caliper mounting bracket to the steering knuckle.

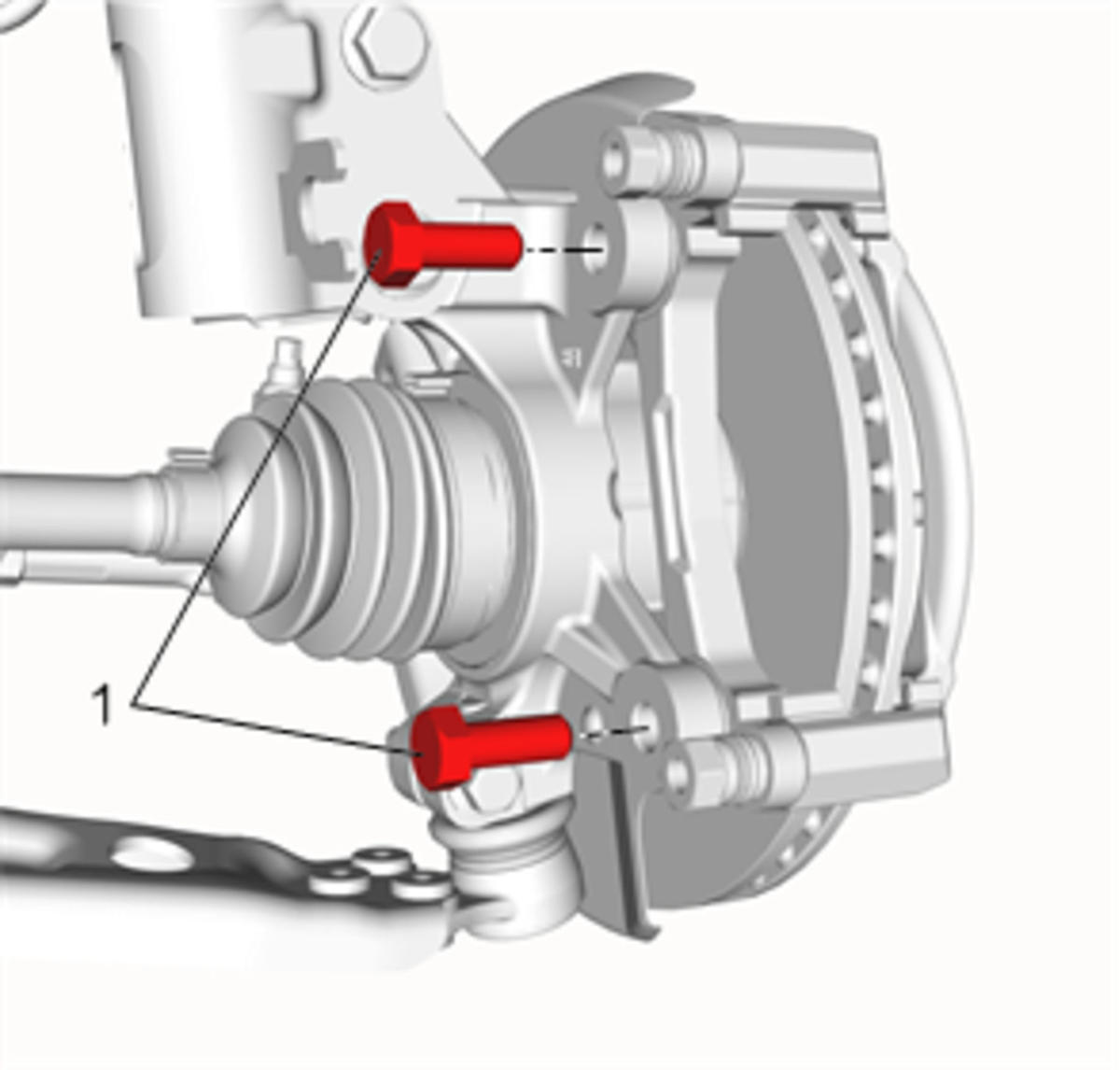

    Fig 1: Discard Brake Caliper Mounting Bracket Bolts
    GM4002611Courtesy of GENERAL MOTORS COMPANY
  2. Install the 2 NEW brake caliper mounting bracket bolts (1) and tighten to 97.5 N.m (72 lb ft).
    CAUTION: Refer to Fastener Caution .
  3. Apply a very thin coating of high temperature silicone brake lubricant to the pad hardware mating surfaces of the caliper bracket only.

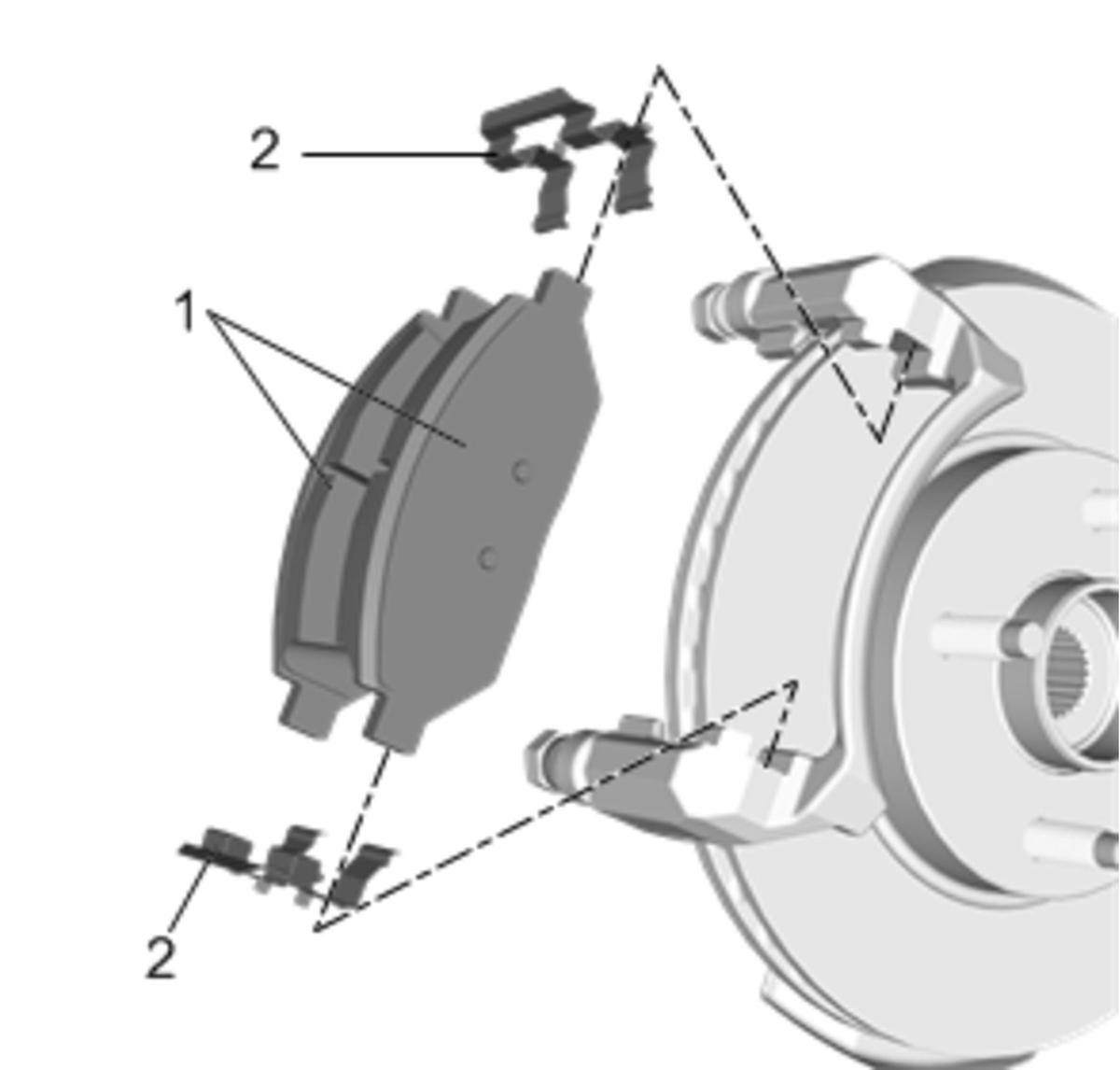

    Fig 2: Brake Pads And Retainers
    GM4002610Courtesy of GENERAL MOTORS COMPANY
  4. Clean the brake pad mating surfaces of the brake pad retainers (2).
  5. Install the brake pad retainers (2) to the brake caliper bracket.
  6. Install the brake pads (1) to the brake caliper bracket.
    NOTE: The wear sensor equipped disc brake pad must be mounted inboard of the rotor with the leading edge of the sensor facing the brake rotor during forward wheel rotation or at the top of the pad when installed in vehicle position.
  7. Remove the support and reposition the brake caliper over the brake pads and to the mounting bracket. Refer to Front Brake Caliper Replacement .
