Section 74 (Mirror System)
>>
Schematic Wiring Diagrams
>>
Outside Rearview Mirror Wiring Schematics
>>
Outside Rearview Mirror (DL2/DLW)
Outside Rearview Mirror (DL2/DLW)
WARNING:
This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

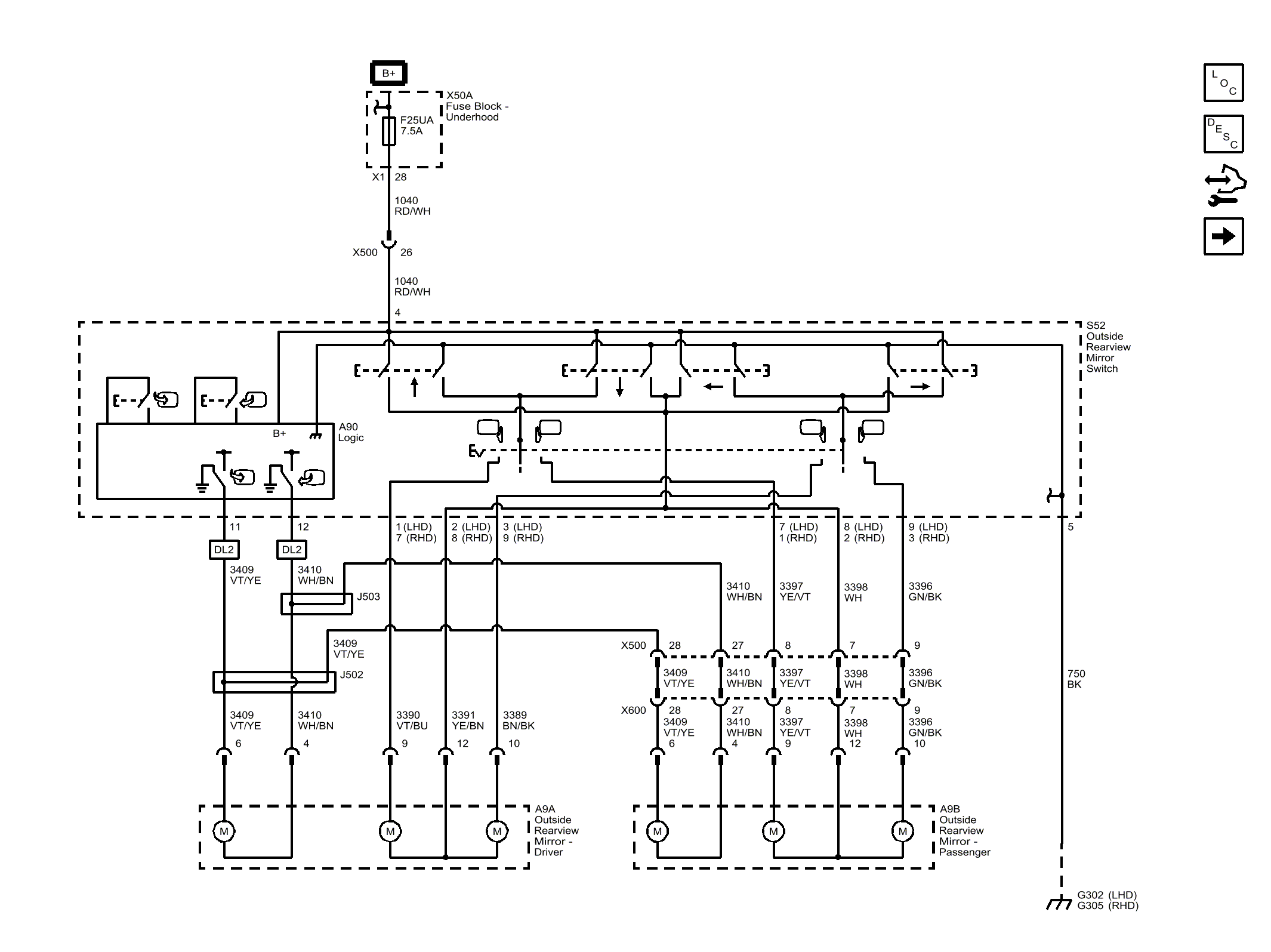

Fig 1: Outside Rearview Mirror (DL2/DLW)
Courtesy of GENERAL MOTORS COMPANY
