Inside Rearview Mirror Replacement

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

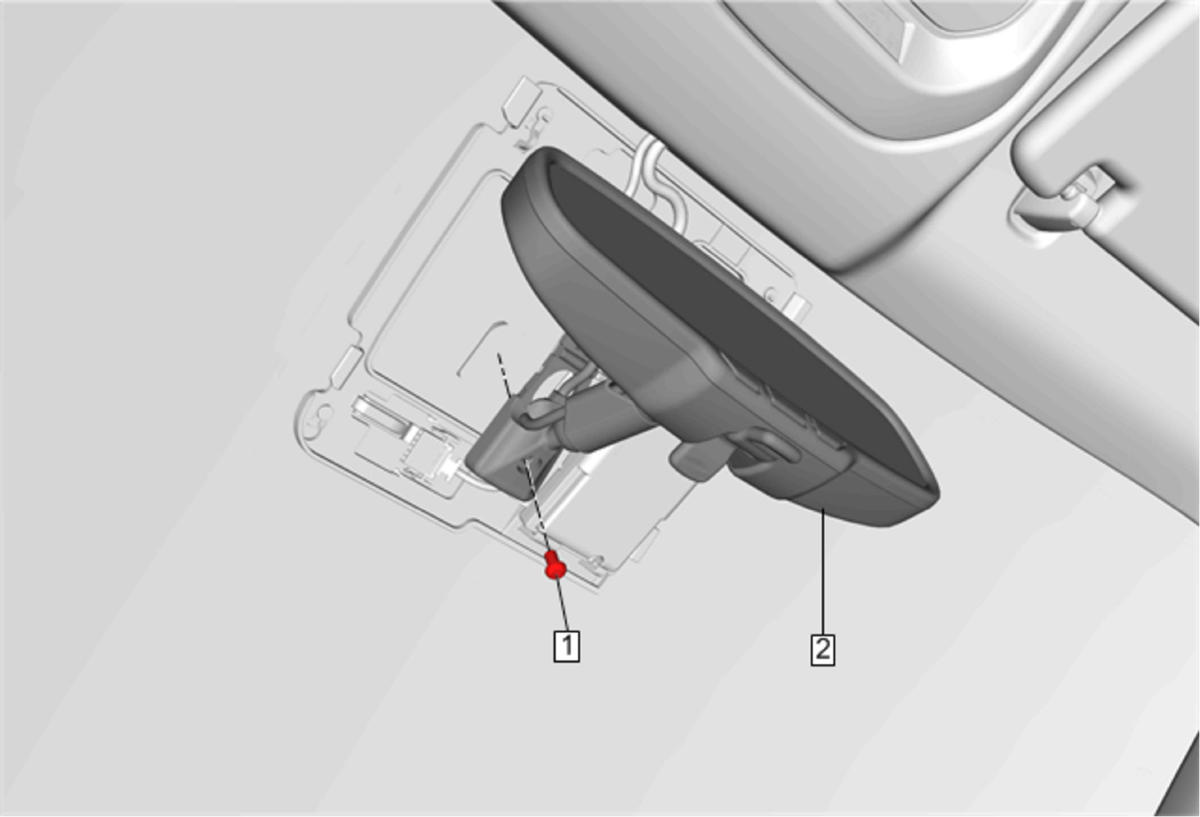

Fig 1: Inside Rearview Mirror

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .
1	Inside Rearview Mirror Screw CAUTION: Refer to Fastener Caution . Tighten 2 N.m (18 lb in)
2	Inside Rearview Mirror Procedure Disconnect the electrical connector. Slide the mirror in an upward motion in order to remove.

Callout

Component Name

Preliminary Procedure
Remove the inside rearview mirror wiring harness cover. Refer to Inside Rearview Mirror Wiring Harness Cover Replacement .

Inside Rearview Mirror Screw

CAUTION: Refer to Fastener Caution .

Tighten
2 N.m (18 lb in)

Inside Rearview Mirror

Procedure

Disconnect the electrical connector.
Slide the mirror in an upward motion in order to remove.
