Rear Bumper Components

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Rear Bumper Components

Items
1. B306E Parking Assist Sensor - Rear Left Outer (UD7) B306E Parking Assist Sensor - Rear Left Outer
2. B306J Parking Assist Sensor - Rear Middle (UD7) B306J Parking Assist Sensor - Rear Middle
3. B306H Parking Assist Sensor - Rear Right Outer (UD7) B306H Parking Assist Sensor - Rear Right Outer

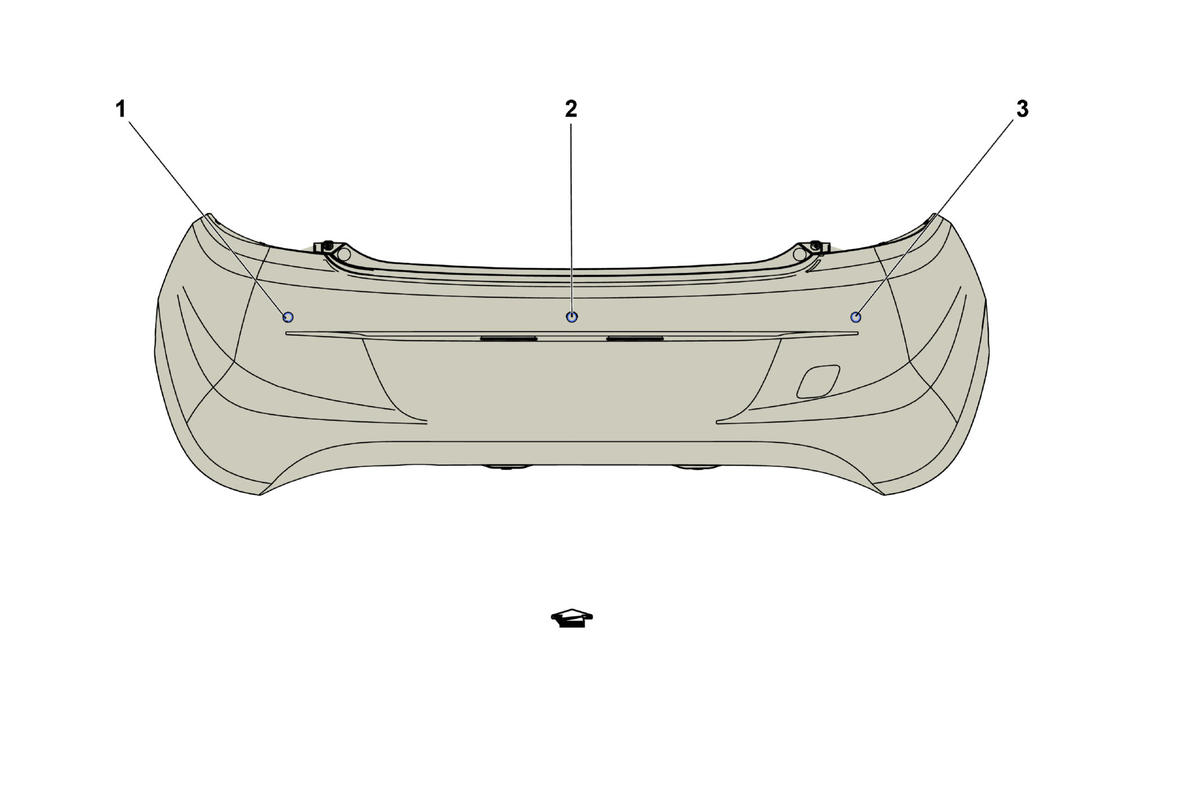

Fig 1: Rear Bumper Components
GM4485186Courtesy of GENERAL MOTORS COMPANY
