Liftgate Components
WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

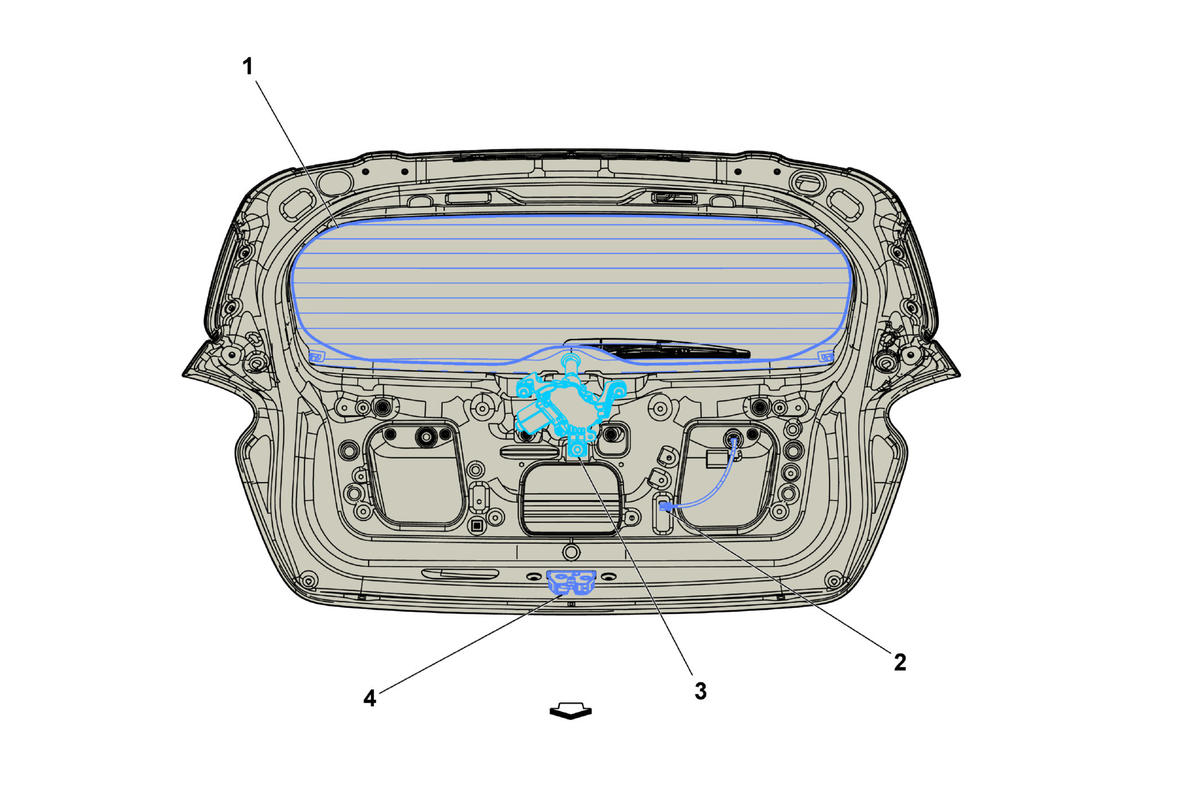

Liftgate Components
| Items |
|---|
| 1. E18 Rear Defogger Grid (C49) E18 Rear Defogger Grid X1E18 Rear Defogger Grid X2 |
| 2. S46 Liftgate Handle Switch (((A60 or B9U) with WE1)) S46 Liftgate Handle Switch (-B9U)S46 Liftgate Handle Switch (A60)S46 Liftgate Handle Switch (B9U) |
| 3. M45 Rear Wiper Motor (C25) M45 Rear Wiper Motor |
| 4. M30 Liftgate Latch M30 Liftgate Latch |
