Right Rear Door Components

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Right Rear Door Components

Items
1. M14RR Door Lock Actuator - Right Rear (AU3) M14RR Door Lock Actuator - Right Rear
2. M74RR Window Motor - Right Rear (A33) M74RR Window Motor - Right Rear
3. P19AM Speaker - Right Rear Door (UQ3) P19AM Speaker - Right Rear Door

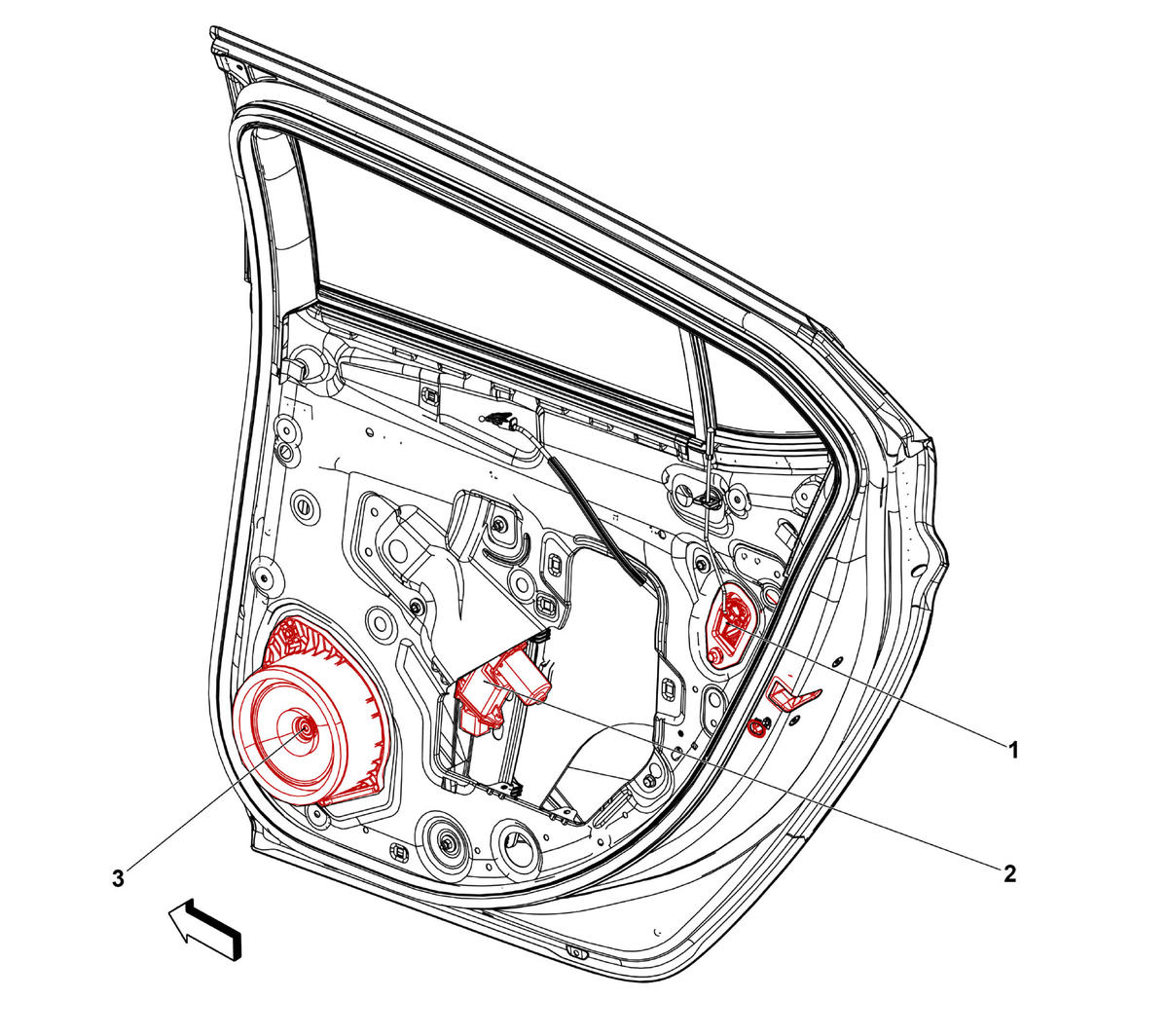

Fig 1: Right Rear Door Components
GM4039702Courtesy of GENERAL MOTORS COMPANY
