Radiator Support Components

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Radiator Support Components

Items
1. R10 Cooling Fan Resistor R10 Cooling Fan Resistor X1 X1R10 Cooling Fan Resistor

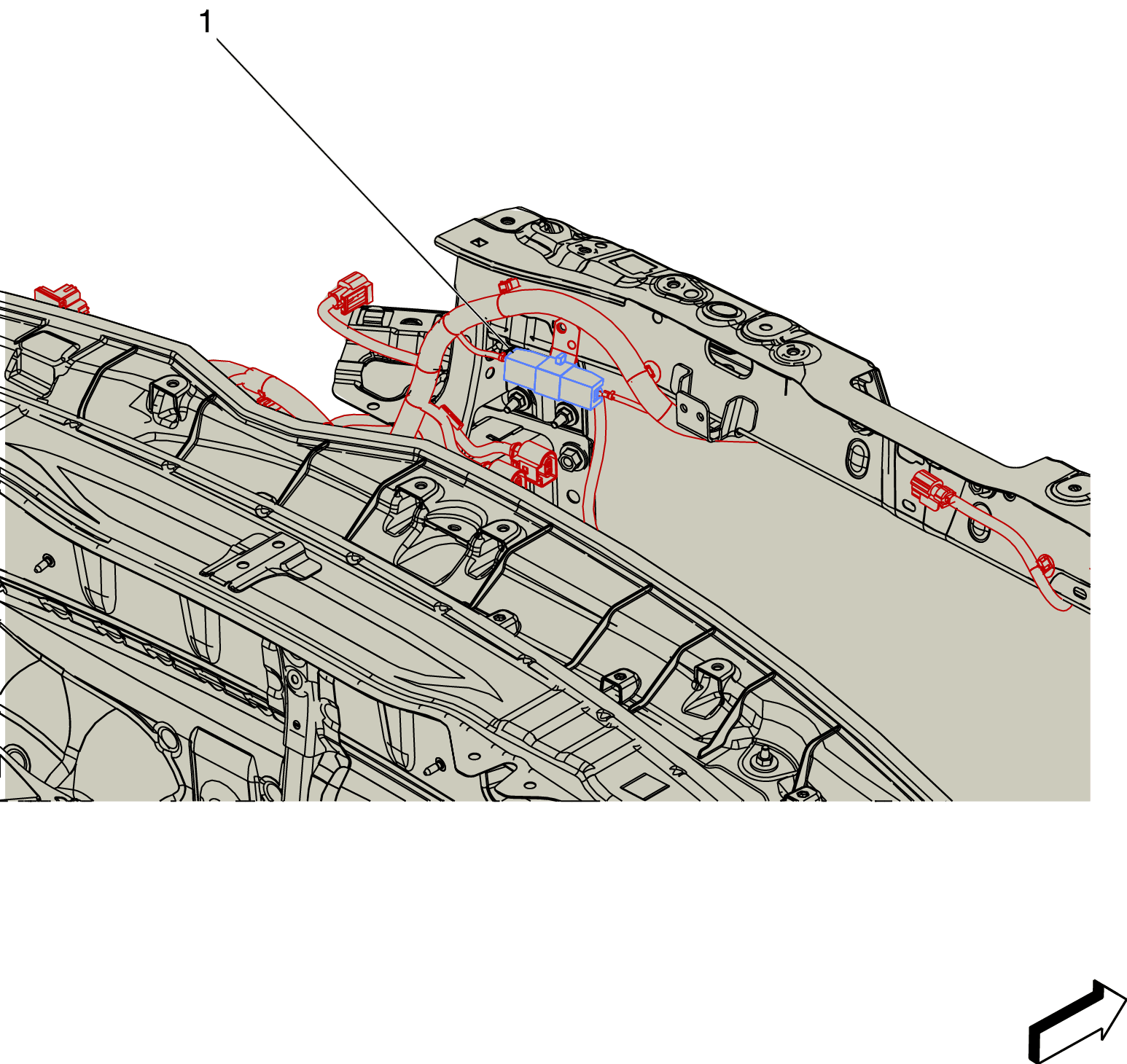

Fig 1: Radiator Support Components
GM4040483Courtesy of GENERAL MOTORS COMPANY
