Front Side of the Vehicle Components

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Front Side of the Vehicle Components

Items
1. E4Z Turn Signal Repeater Lamp - Right E4Z Turn Signal Repeater Lamp - Right
2. E4Y Turn Signal Repeater Lamp - Left E4Y Turn Signal Repeater Lamp - Left

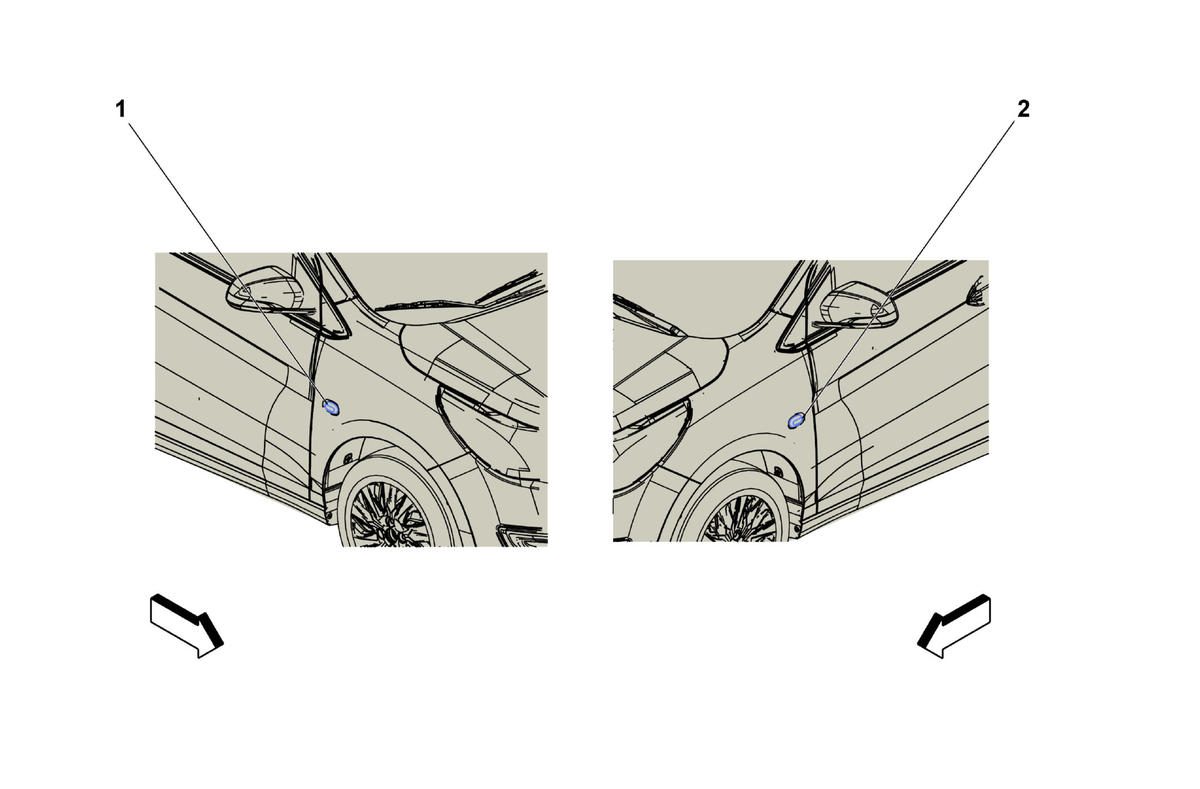

Fig 1: Front Side of the Vehicle Components
GM4040480Courtesy of GENERAL MOTORS COMPANY
