Engine Compartment Components (RHD)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.
Engine Compartment Components (RHD)

Items
1. M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2. B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
3. K17 Electronic Brake Control Module K17 Electronic Brake Control Module
4. C1 Battery C1 BatteryC1 Battery

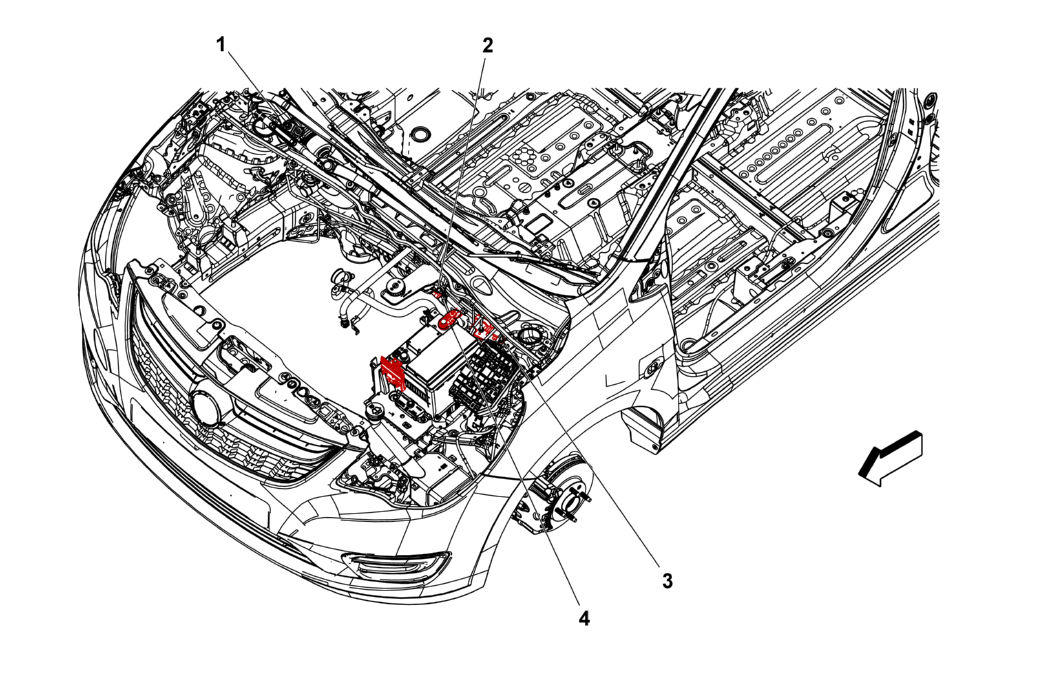

Fig 1: Engine Compartment Components (RHD)
GM4331898Courtesy of GENERAL MOTORS COMPANY
