Front Side Door Window Regulator Replacement (Power)

WARNING: This page is about a different car, the 2017 Chevrolet Spark. However, it is still accessible from the selected car via links, so may be relevant.

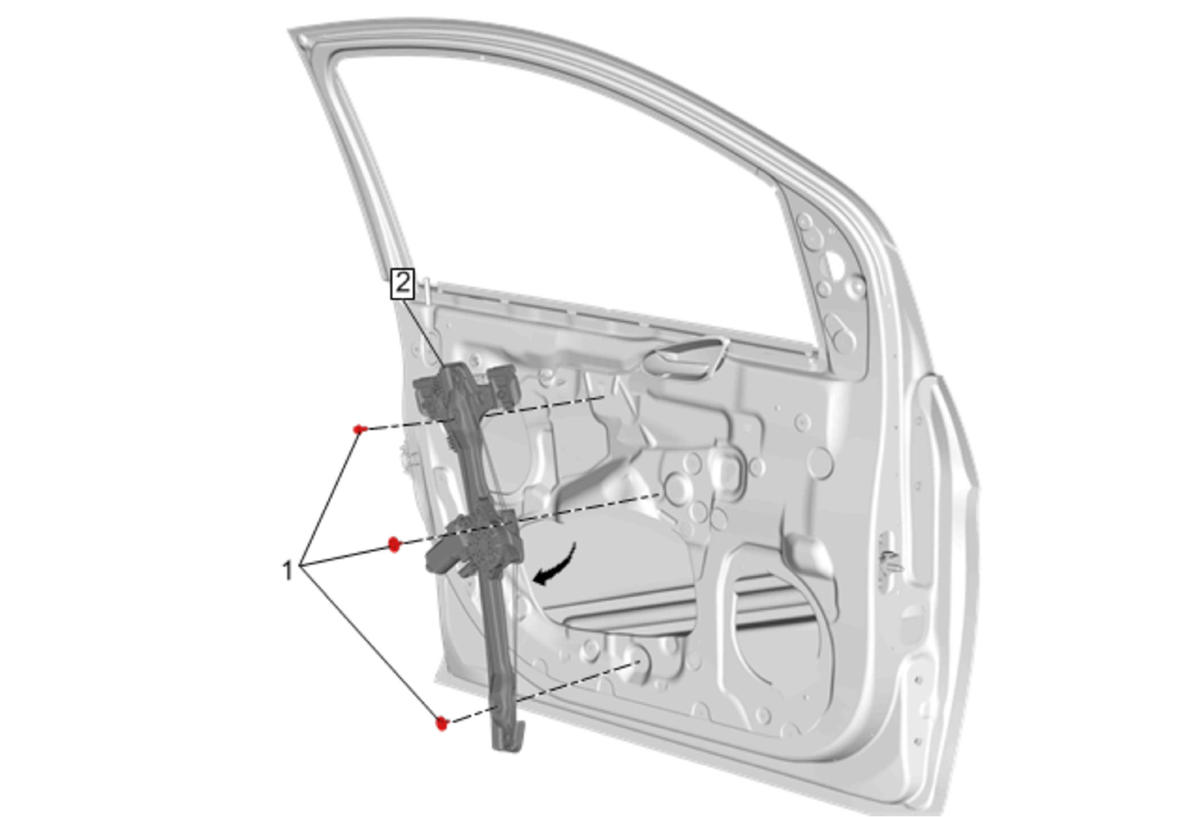

Fig 1: Front Side Door Window Regulator (Power)
GM4032637Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
WARNING: Refer to Glass and Sheet Metal Handling Warning .
Preliminary Procedure Remove the front side door window from the window regulator guide nuts. Refer to Front Side Door Window Replacement .
1 Front Side Door Power Window Regulator Bolts (Qty: 3)
CAUTION: Refer to Fastener Caution .

Procedure

  1. Remove the front side door water deflector.
  2. Disconnect the electric connector from the regulator motor.

Tighten
11 N.m (97 lb in)
2 Front Side Door Power Window Regulator

Procedure

  1. Transfer the front side door window regulator motor. Refer to Front Side Door Window Regulator Motor Replacement .
  2. Inspect the door window for proper operation before installing the door trim.
  3. Perform the window regulator motor program relearn. Refer to Window Motor Programming - Express Function .
